Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the cowl top cover.
(Refer to REMOVE COWL TOP COVER
Remove the main crash pad assembly.
(Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")
Disconnect the steering column connectors.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
Lower the steering column after loosening the mounting bolts.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
Disconnect the photo sensor wiring fastener.
Loosen the bolt and then separate the rear air duct (A).
[LH]

Fig 1: Separate Rear Air Duct (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 2: Separate Rear Air Duct (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the nuts and then separate the rear air duct (A).

Fig 3: Separate Rear Air Duct Nuts

Courtesy of KIA MOTORS AMERICA, INC.

Disconnect the airbag control module (SRSCM) connector (A) and shift lever wiring connector (B).

Fig 4: Disconnect Airbag Control Module (SRSCM) Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A) and the mounting clips in the front pillar.
[Driver's]

Fig 5: Disconnect Front Pillar Connector And Mounting Clips (Driver)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Disconnect Front Pillar Connector And Mounting Clips (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]
Disconnect the LDC unit connector (A) and BCM unit connector (B).

Fig 7: Disconnect LDC Unit Connector And BCM Unit Connector

Courtesy of KIA MOTORS AMERICA, INC.

Disconnect the AVM unit connector (A) and loosen the bolt (B).

Fig 8: Disconnect AVM Unit Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the passenger compartment junction box connectors (A).

Fig 9: Disconnect Passenger Compartment Junction Box Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the BCM unit connectors (A).

Fig 10: Disconnect BCM Unit Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the multi box connectors (A).
[Driver's]

Fig 11: Disconnect Multi Box Connectors (Driver)
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

Fig 12: Disconnect Multi Box Connectors (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air duct (A) and disconnect the smart key unit connector (B), and evaporator core sensor (C).

Fig 13: Disconnect Smart Key Unit Connector And Evaporator Core Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the heater and blower unit connector.
[Driver's]
1. Disconnect the mode actuator (A) and temperature actuator (B).
Fig 14: Disconnect Mode Actuator And Temperature Actuator
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]
1. Disconnect the temperature actuator (A), cluster ionizer (B) and resistor connector (C).
2. Disconnect the intake actuator connector (A).

  Fig 16: Disconnect Intake Actuator Connector
  Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect the blower motor connector (A).

  Fig 17: Disconnect Blower Motor Connector
  Courtesy of KIA MOTORS AMERICA, INC.

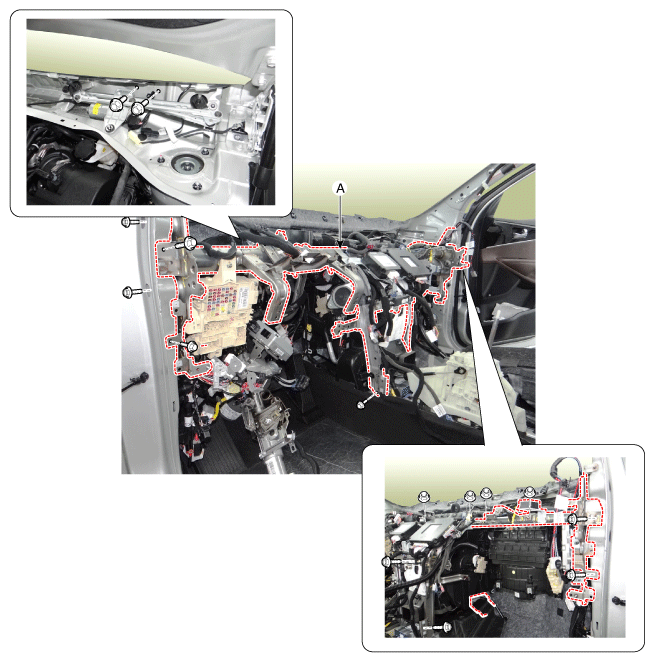

After loosening the mounting bolts and nuts, then remove the cowl cross bar assembly (A).

Fig 18: Remove Cowl Cross Bar Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Make sure the crash pad fits onto the guide pins correctly.
Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
Enter the anti-theft code for the radio, then enter the customer's radio station presets.
