Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

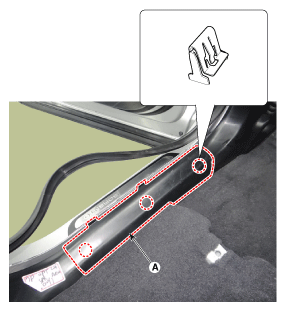

1. Using a screwdriver or remover, remove the front door scuff trim (A).
   Fig 1: Remove Front Door Scuff Trim

   Courtesy of KIA MOTORS AMERICA, INC.
2. Loosen the screw and remove the hood latch release handle (A).
   Fig 2: Remove Hood Latch Release Handle

   Courtesy of KIA MOTORS AMERICA, INC.

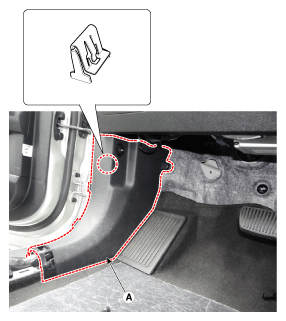

3. Using a screwdriver or remover, remove the cowl side trim (A).
   Fig 3: Remove Cowl Side Trim

   Courtesy of KIA MOTORS AMERICA, INC.

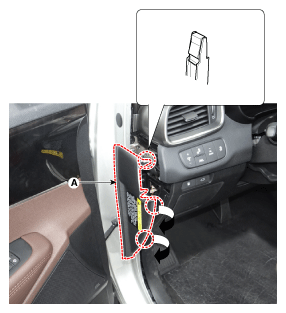

4. Using a screwdriver or remover, remove the crash pad side cover [LH] (A).
   Fig 4: Remove Crash Pad Side Cover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

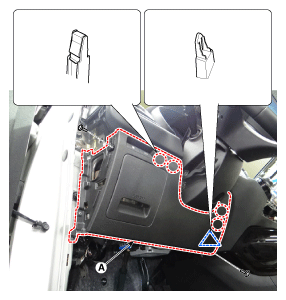

5. Loosen the mounting screws and remove the crash pad lower panel (A).
   Fig 5: Remove Crash Pad Lower Panel

   Courtesy of KIA MOTORS AMERICA, INC.
6. Disconnect the crash pad lower switch connectors (A).
   Fig 6: Disconnect Crash Pad Lower Switch Connectors

   Courtesy of KIA MOTORS AMERICA, INC.

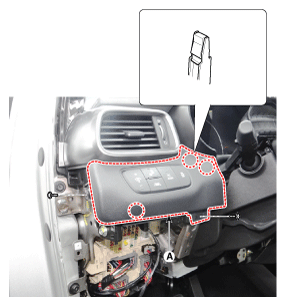

7. Loosen the mounting screw and remove the crash pad garnish [LH] (A).
   Fig 7: Remove Crash Pad Garnish (LH)

   Courtesy of KIA MOTORS AMERICA, INC.
8. Disconnect the crash pad side switch connectors (A).
   Fig 8: Disconnect Crash Pad Side Switch Connectors

   Courtesy of KIA MOTORS AMERICA, INC.

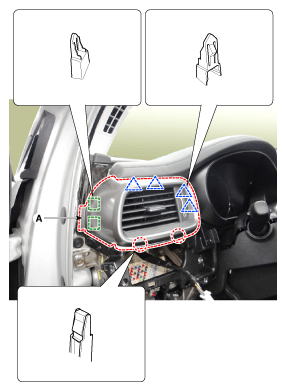

9. Remove the crash pad side air vent duct [LH] (A).
   Fig 9: Remove Crash Pad Side Air Vent Duct (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

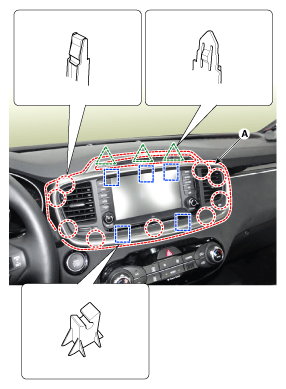

10. Remove the center fascia panel (A).
    Fig 10: Remove Center Fascia Panel

    Courtesy of KIA MOTORS AMERICA, INC.
11. Using a screwdriver or remover, separate the steering column shroud upper panel (A).
    Fig 11: Separate Steering Column Shroud Upper Panel

    Courtesy of KIA MOTORS AMERICA, INC.
12. Loosen the mounting screws and remove the cluster fascia panel (A).
    Fig 12: Remove Cluster Fascia Panel

    Courtesy of KIA MOTORS AMERICA, INC.
13. Install in the reverse order of removal.

• Make sure the connector are connected in properly.
• Replace any damaged clips.
