Circuit Diagram

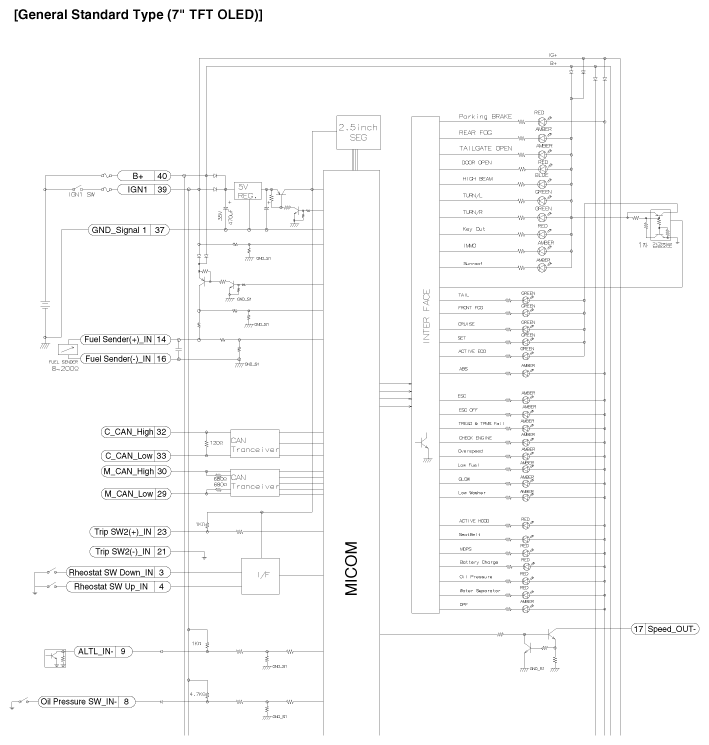

Fig 1: MICOM Schematic Diagram (1 Of 6)

G11858689

Courtesy of KIA MOTORS AMERICA, INC.

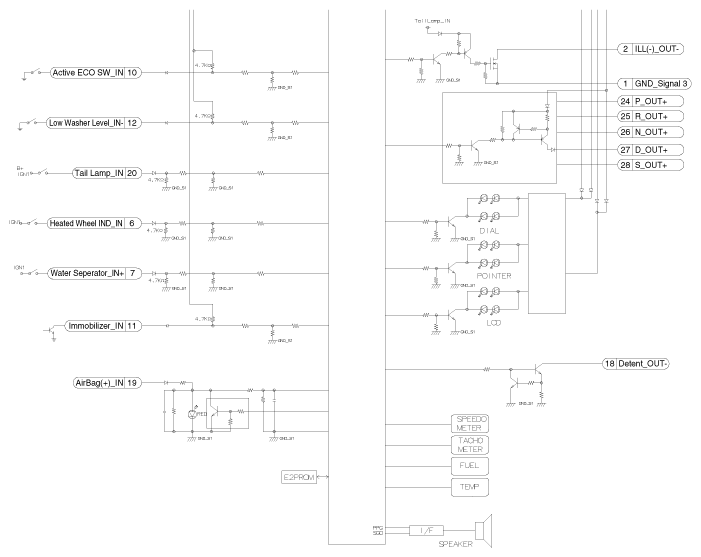

Fig 2: MICOM Schematic Diagram (2 Of 6)

G11858690

Courtesy of KIA MOTORS AMERICA, INC.

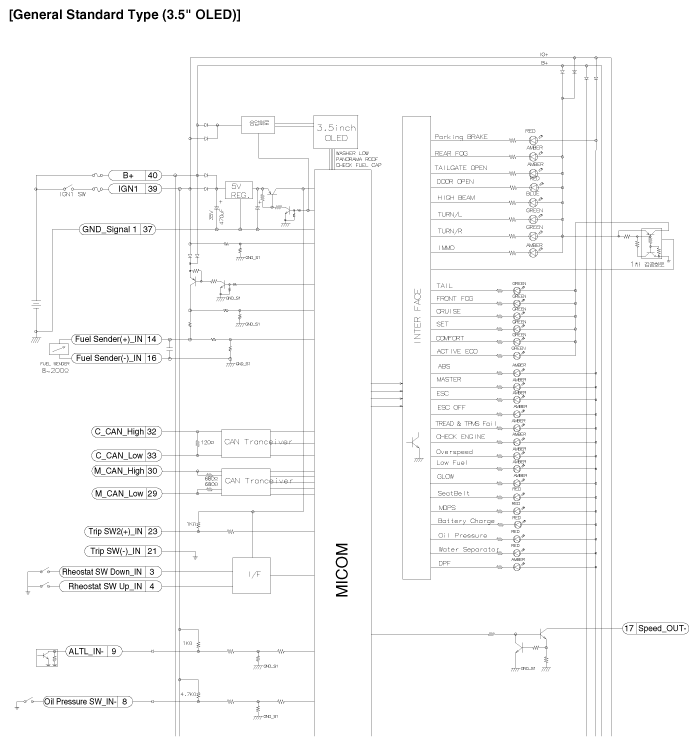

Fig 3: MICOM Schematic Diagram (3 Of 6)

G11858691

Courtesy of KIA MOTORS AMERICA, INC.

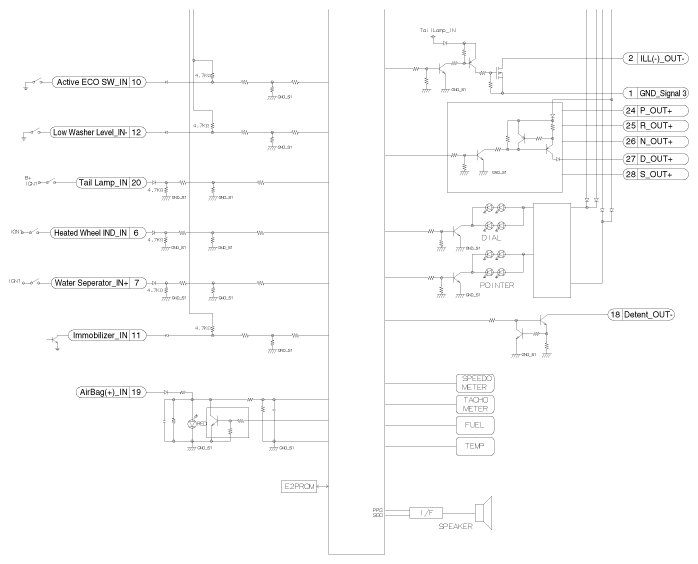

Fig 4: MICOM Schematic Diagram (4 Of 6)

G11858692

Courtesy of KIA MOTORS AMERICA, INC.

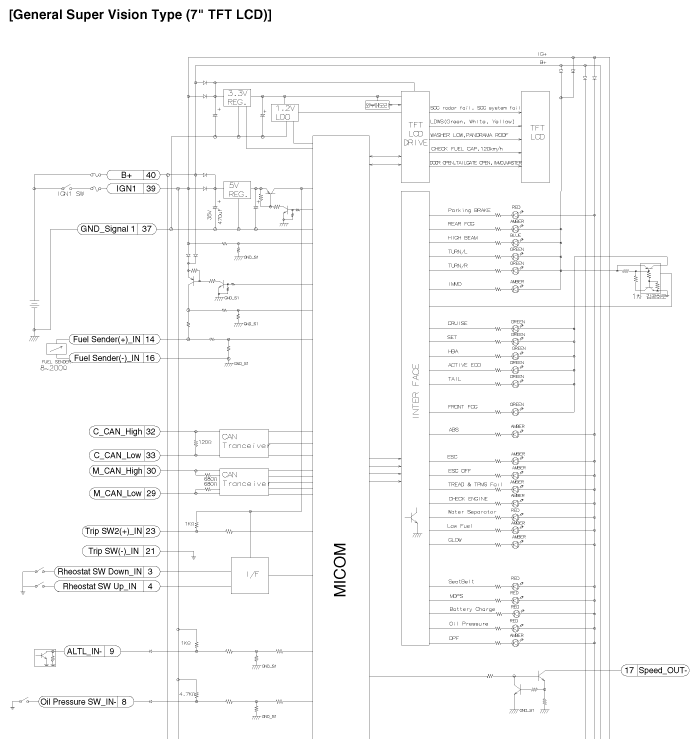

Fig 5: MICOM Schematic Diagram (5 Of 6)

G11858693

Courtesy of KIA MOTORS AMERICA, INC.

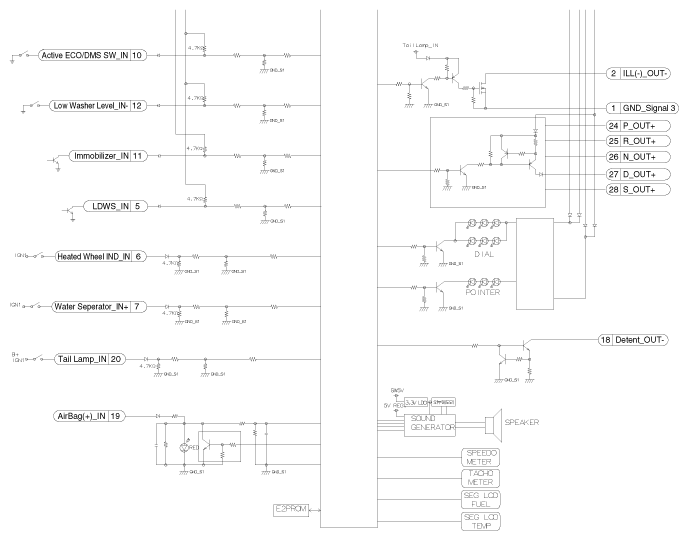

Fig 6: MICOM Schematic Diagram (6 Of 6)

G11858694

Courtesy of KIA MOTORS AMERICA, INC.
