CLU Variant Coding

After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.

1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
2. Select model and "BCM".
3. Select Variant coding mode to perform.

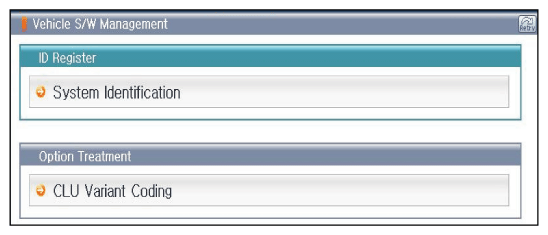

   Fig 1: Display - CLU Variant Coding Screen (1 Of 3)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 2: Display - CLU Variant Coding Screen (2 Of 3)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Display - CLU Variant Coding Screen (3 Of 3)

   Courtesy of KIA MOTORS AMERICA, INC.
4. If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.
   Fig 4: Display - CLU Variant Coding Screen

   Courtesy of KIA MOTORS AMERICA, INC.
