Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the Cowl Top Cover.
(Refer to "COWL TOP COVER ")
Remove the both front seats.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
Remove the main crash pad assembly.
(Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")
Disconnect the steering column connectors.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
Down the steering column after loosening the mounting bolts.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
Disconnect the passenger compartment junction box connectors (A).

Fig 1: Disconnecting Passenger Compartment Junction Box Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the multi box connectors (A).
[Driver's]

Fig 2: Locating Multi Box Connectors (Driver)
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

Fig 3: Locating Multi Box Connectors (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the airbag control module (SRSCM) connector (A).

Fig 4: Disconnecting Airbag Control Module (SRSCM) Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the wiring mounted fastener.

Fig 5: Locating Wiring Mounted Fastener
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A) and the mounting clips (B) in the front pillar.
[Driver's]

Fig 6: Locating Connector And Mounting Clips In Front Pillar (Driver)
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

Fig 7: Locating Connector And Mounting Clips In Front Pillar (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the smart key antenna connector (A).

Fig 8: Disconnecting Smart Key Antenna Connector
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the nut and remove the antenna (A).

Fig 9: Removing Antenna
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the screw and remove the air duct (A).

Fig 10: Removing Air Duct
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the heater and blower unit connector.
1. Disconnect the cluster Ionizer (A), FET (B), evaporator temperature sensor (C), and mode adjust actuator (D).

  Fig 11: Disconnecting Cluster Ionizer, FET, Evaporator Temperature Sensor
  Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect the auto defogging actuator connector (A), intake actuator connector (B), and the wiring mounted fastener.

  Fig 12: Disconnecting Auto Defogging Actuator Connector, Intake Actuator Connector
  Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect the photo sensor wiring fastener (A).

  Fig 13: Disconnecting Photo Sensor Wiring Fastener
  Courtesy of KIA MOTORS AMERICA, INC.
4. Disconnect the mode control actuator (A), temperature control actuator (B) and then remove the wiring fastener.

  Fig 14: Removing Wiring Fastener (1 Of 2)
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 15: Removing Wiring Fastener (2 Of 2)
  Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt and separate the smart key unit (A).

Fig 16: Separating Smart Key Unit
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting bolts and nuts, remove the cowl cross bar assembly (A).

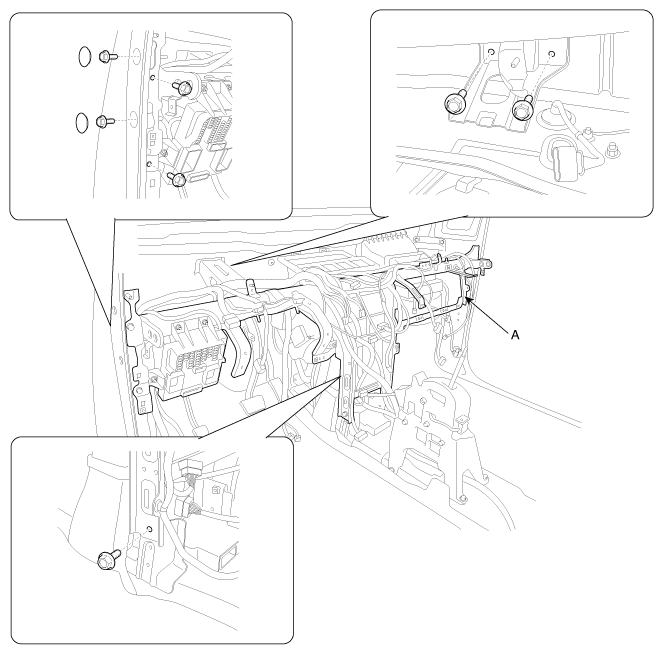

[LH]

Fig 17: Removing Cowl Cross Bar Assembly (LH)
Courtesy of KIA MOTORS AMERICA, INC.

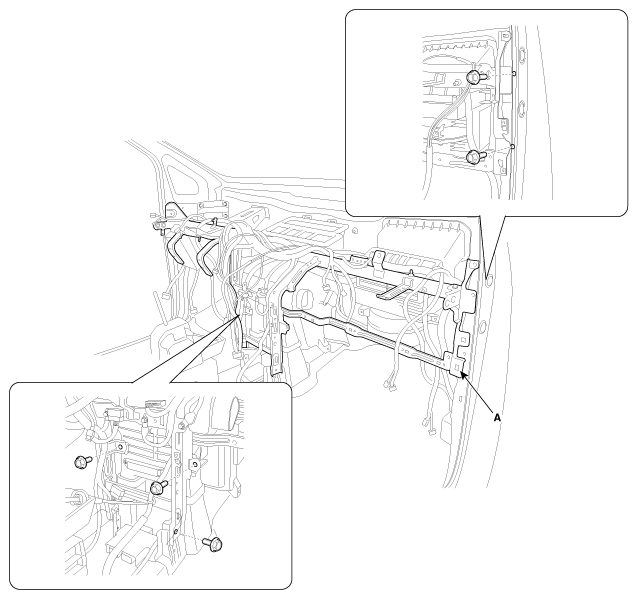

[RH]

Fig 18: Removing Cowl Cross Bar Assembly (RH)
Courtesy of KIA MOTORS AMERICA, INC.

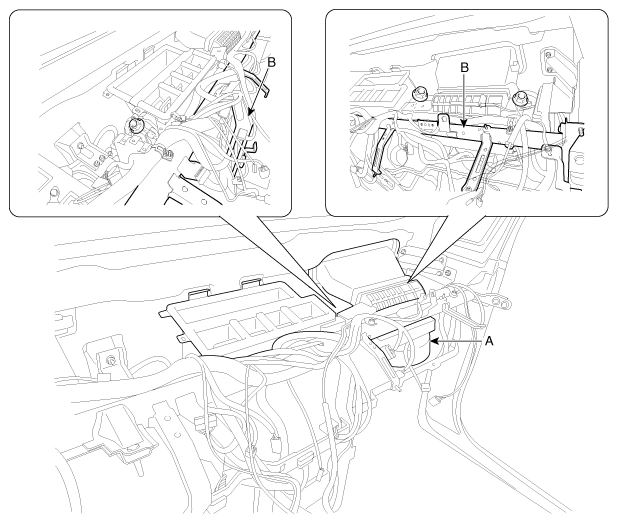

Loosen the nuts and remove the cowl cross bar assembly (B) from air conditioning unit (A).

Fig 19: Removing Cowl Cross Bar Assembly From Air Conditioning Unit
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure that the crash pad wire harnesses are not pinched.
- Make sure that the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, and then enter the customer's radio station presets.
