Crash Pad Upper Panel Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

Remove the following items:
- Center fascia panel
- Audio assembly
- Cluster fascia panel
- Cluster assembly
- Crash pad side cover [LH, RH]
- Crash pad lower panel
- Glove box & Glove box housing
- Heater control unit
After loosening the mounting screws, then remove the crash pad upper panel (A).

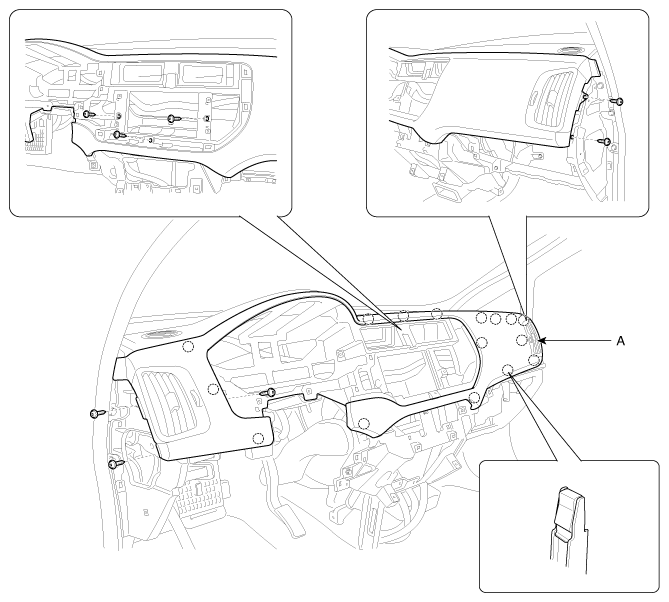

Fig 1: Locating Crash Pad Upper Panel With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damage clips.
