Cowl Cross Bar Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

Remove the following items:
- Front seat
  (Refer to "FRONT SEAT ")
- Front pillar trim
  (Refer to "INTERIOR TRIM ")
- Floor console assembly
  (Refer to "CONSOLE ")
- Front door scuff trim
  (Refer to "INTERIOR TRIM ")
- Cowl side trim
  (Refer to "INTERIOR TRIM ")
- Cowl top cover
  (Refer to "COWL TOP COVER ")
- Main crash pad assembly
Disconnect the blower unit connectors.
(Refer to "AIR CONDITIONING SYSTEM , HEATER , BLOWER ")
Disconnect the multi box connectors (A).
[Driver's]

Fig 1: Locating Multi Box Connectors (Driver's)
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

Fig 2: Locating Multi Box Connectors (Passenger's)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the passenger compartment junction box connectors (A).

Fig 3: Locating Passenger Compartment Junction Box Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the airbag control module (SRSCM) connectors (A).

Fig 4: Locating Airbag Control Module Connectors
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting bolts and nuts, then remove the cowl cross bar assembly (A).

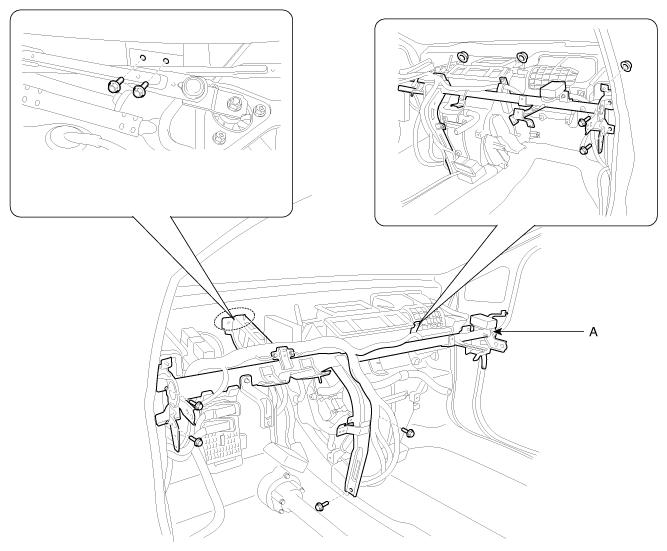

Fig 5: Locating Cowl Cross Bar Assembly With Mounting Bolts And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
