Rear Muffler

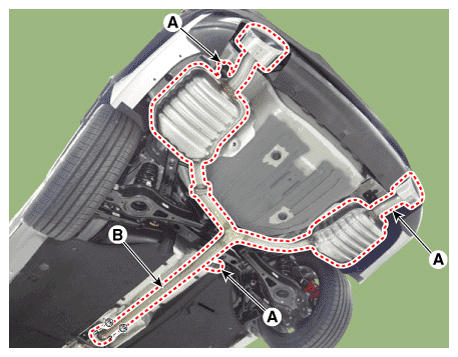

  1. Detach the rubber hanger (A) from the main muffler.
  2. Remove the main muffler (B).

    Tightening torque:

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

    Fig 1: Removing Main Muffler
    G11825648Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When installing, replace with new gaskets.
  3. Install in the reverse order of removal.

Replacement procedure of center muffler using clamp

Under warranty: Replace the center muffler assembly.

Out of warranty: It is available to replace the center muffler as the procedure below.

  1. Check that the clamping part of the center muffler assembly is damaged or deformed.

    If the muffler is too corroded to clamp, replace the center muffler assembly.

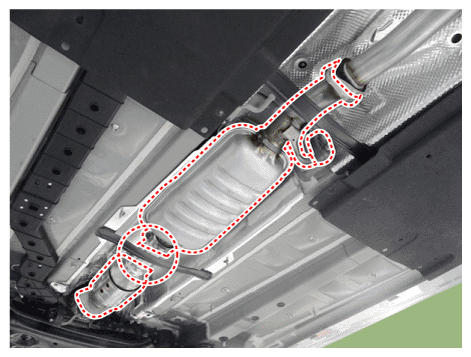

    Fig 2: Replacing Center Muffler Assembly
    G11825649Courtesy of KIA MOTORS AMERICA, INC.

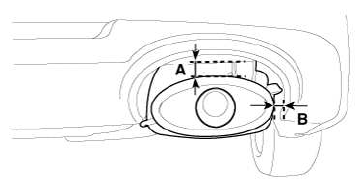

  2. Record the gap (A, B) between the tail pipe (or tail trim) and the rear bumper.
    Fig 3: Recording Gap Between Tail Pipe (Tail Trim) And Rear Bumper
    G11825650Courtesy of KIA MOTORS AMERICA, INC.

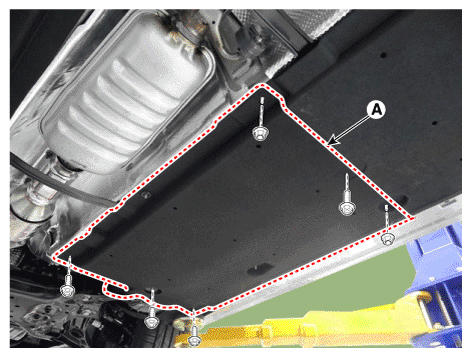

  3. Remove the RH floor under cover (A).
    Fig 4: Removing RH Floor Under Cover
    G11825651Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the LH floor under cover (A).
    Fig 5: Removing LH Floor Under Cover
    G11825652Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the bracket (A).
    Fig 6: Removing Bracket
    G11825653Courtesy of KIA MOTORS AMERICA, INC.
  6. Detach the rubber hanger (A) from the center muffler.
  7. Remove the catalytic converter & center muffler (B).
    Fig 7: Removing Catalytic Converter & Center Muffler
    G11825654Courtesy of KIA MOTORS AMERICA, INC.
  8. Cut the center muffler as the instruction below.

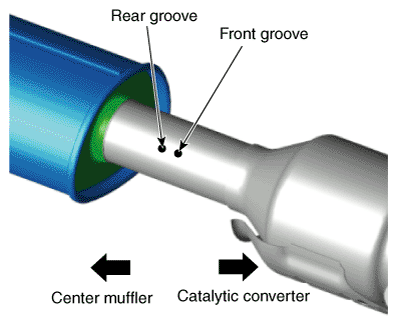

    • Cut the front groove of the muffler.
    Fig 8: Locating Front Groove Of Muffler
    G11825655Courtesy of KIA MOTORS AMERICA, INC.

    [Replacement muffler]

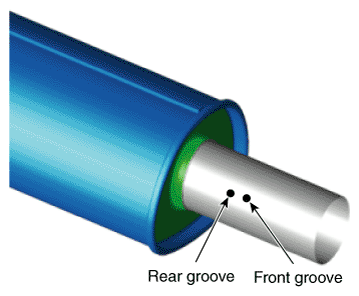

    • Cut the rear groove of the replacement muffler.
    Fig 9: Locating Rear Groove Of Replacement Muffler
    G11825656Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • To prevent a leak, remove the rust on the clamping part or the burr on the cutting part.
    • Cut the pipe vertically.

    Information

    • Pipe cutter available to cut the pipe vertically.
      Fig 10: Pipe Cutter
      G11825657Courtesy of KIA MOTORS AMERICA, INC.
    • Use a hacksaw as the procedure below, if a pipe cutter is unavailable.

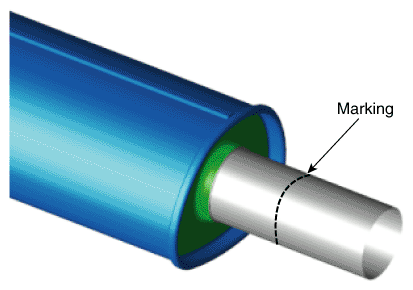

      1. Mark the cutting position to cut the pipe vertically.
        Fig 11: Marking Cutting Position To Pipe
        G11825658Courtesy of KIA MOTORS AMERICA, INC.

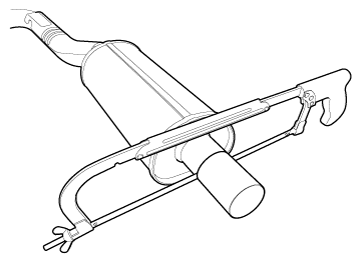

      2. Cut the pipe along the marking line by using hacksaw.
    Fig 12: Cutting Pipe Along Marking Line Using Hacksaw
    G11825659Courtesy of KIA MOTORS AMERICA, INC.
  9. Install the center muffler.

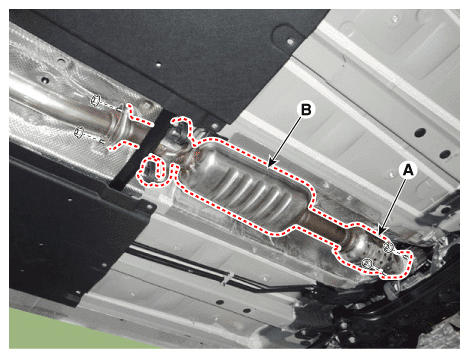

    1. Install the catalytic converter (A) and the center muffler (B) for replacement by tightening the nuts lightly, not completely.
      Fig 13: Installing Catalytic Converter And Center Muffler
      G11825660Courtesy of KIA MOTORS AMERICA, INC.
      NOTE: When installing the muffler, replace the gasket with new one.

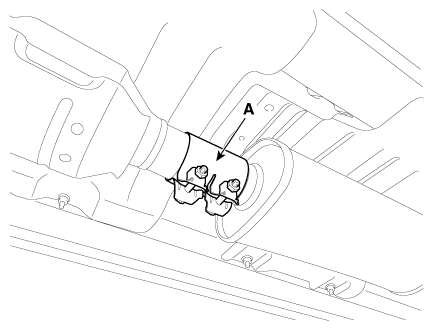

    2. Put the clamp (A) between the cutting part of each pipe and tighten the clamp lightly, not completely.
      Fig 14: Locating Clamp
      G11825661Courtesy of KIA MOTORS AMERICA, INC.
    3. Tighten the catalytic converter and the center muffler with specified torque.

      Tightening torque:

      39.2~58.8 N.m (4.0 - 6.0 kgf.m, 28.9~43.4 lb.ft)

    4. Compare the gap between the tail pipe (or tail trim) and the rear bumper with the record measured before removing the center muffler assembly.
      NOTE: If the tail pipe is installed differently compared to the initial position, the bumper might be damaged by the pipe heat or interfere between the tail pipe and the rear bumper.
    5. Do not tighten the clamp at a time. Tighten the clamp nuts to the specified torque, by turns.

      Tightening torque:

      17.6~23.5 N.m (1.8 - 2.4 kgf.m, 13.0~17.4lb.ft)

    Fig 15: Locating Clamp
    G11825662Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the clamp that was tightened completely. It may cause leak to reuse the clamp that was tightened completely.

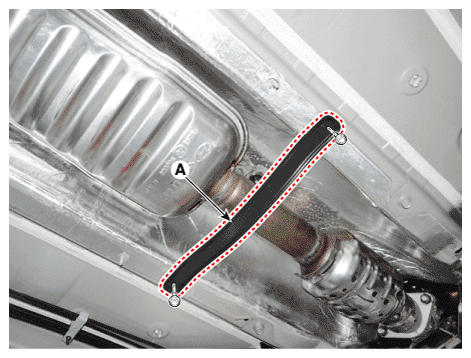

  10. Install the bracket (A).
    Fig 16: Installing Bracket
    G11825663Courtesy of KIA MOTORS AMERICA, INC.

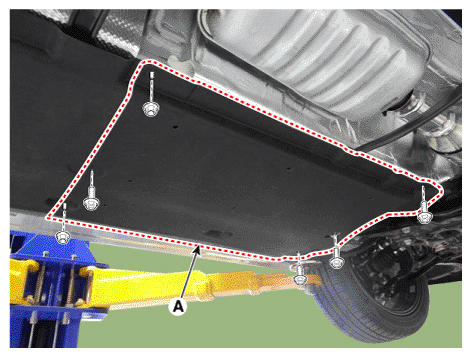

  11. Install LH floor under cover (A).
    Fig 17: Installing LH Floor Under Cover
    G11825664Courtesy of KIA MOTORS AMERICA, INC.
  12. Install RH floor under cover (A).
Fig 18: Installing RH Floor Under Cover
G11825665Courtesy of KIA MOTORS AMERICA, INC.
