Repair Procedures: Replacement

CAUTION:

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.

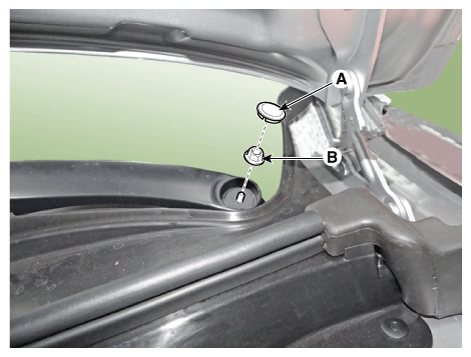

Remove the cap (A) and then remove the nuts (B).
Tightening torque:

22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb.ft)

Fig 1: Removing Cowl Top Cover
Courtesy of KIA MOTORS AMERICA, INC.

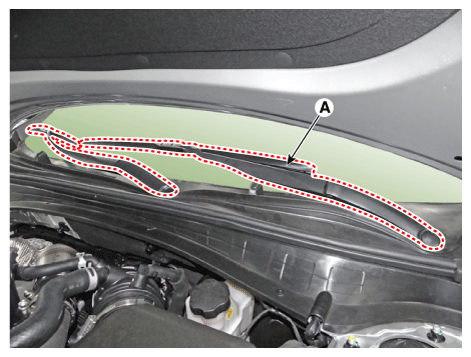

Remove the wiper arm (A).

Fig 2: Removing Wiper Arm
Courtesy of KIA MOTORS AMERICA, INC.

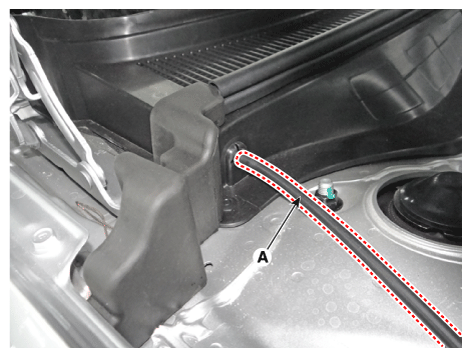

Disconnect the nozzle hose (A).

Fig 3: Disconnecting Nozzle Hose
Courtesy of KIA MOTORS AMERICA, INC.

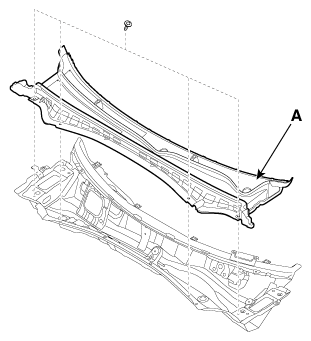

Detach the clips, then remove the cowl top cover (A).

Fig 4: Removing Cowl Top Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
