Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

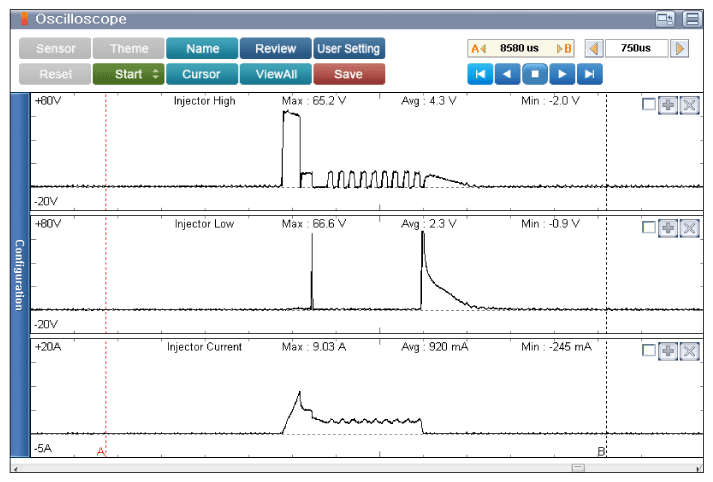

Fig 1: Screen Display - Engine Idle After Warm Up

Courtesy of KIA MOTORS AMERICA, INC.

Fuel injection time - Approx. 1450μs
CH. A - Injector Max 64.5V

CH. AUX - Injector Current MAX 9.21A

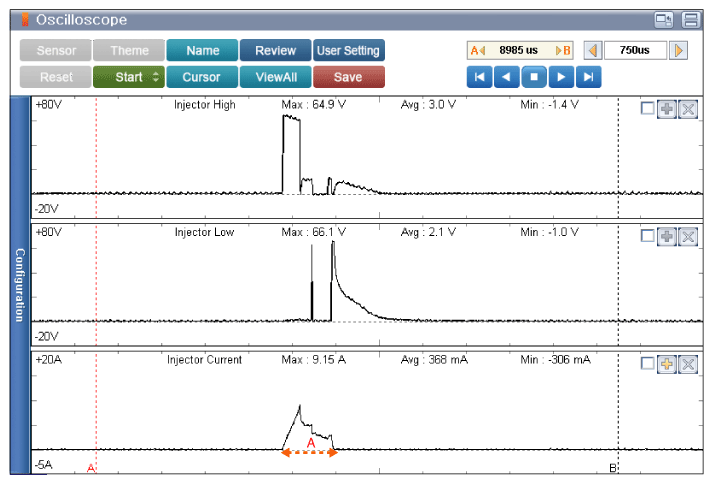

Fig 2: Screen Display - Fuel Injection (Approx. 2500RPM)

Courtesy of KIA MOTORS AMERICA, INC.

Fuel injection time - Approx. 900μs
CH. A - Injector Max 64.9V

CH. AUX - Injector Current MAX 9.15A

Fig 3: Screen Display - Injector (Acceleration)

Courtesy of KIA MOTORS AMERICA, INC.

CH. A - Injector Max 65.2V

CH. AUX - Injector Current MAX 9.09A
