Section 95 (Engine Control System Diagnosis - 1.6L (1 Of 3) - Optima (Except HEV))
>>
DTC P0193: Fuel Rail Pressure Sensor Circuit High Input
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

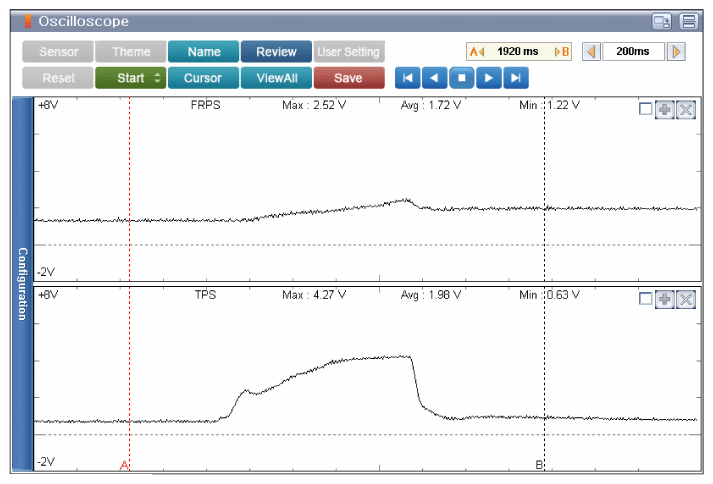

Fig 1: Screen Display - FRPS And TPS Signal Waveform (Acceleration)
Courtesy of KIA MOTORS AMERICA, INC.
