System Inspection

WARNING: This page is about a different variant/trim than selected.

■ Resetting Adaptive Values

Connect KDS/GDS to DLC (Data Link Cable).
Ignition "ON" & ENG "OFF"
Select the "Vehicle S/W Management" about related DTC with KDS/GDS.

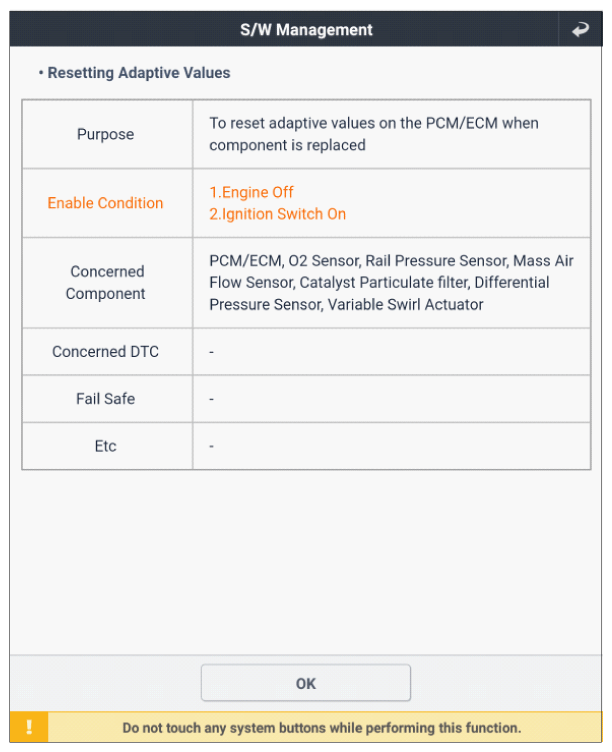

Fig 1: Screen Display - Select Resetting Adaptive Values For Resetting TPS Values
Courtesy of KIA MOTORS AMERICA, INC.

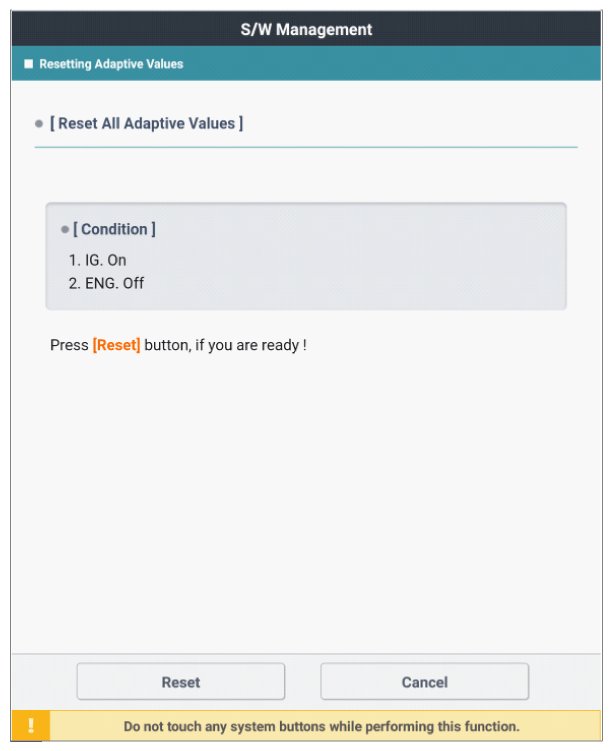

Fig 2: Screen Display - Press Reset Button To Progress For Next Procedure
Courtesy of KIA MOTORS AMERICA, INC.

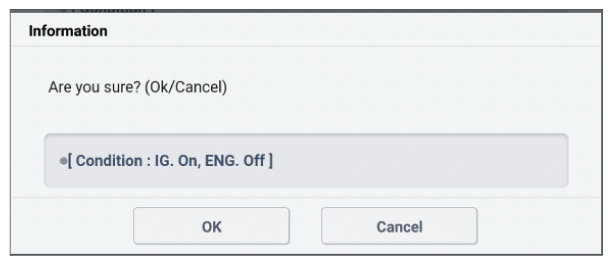

Fig 3: Screen Display - Press OK Button (IG ON, ENG OFF)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - Completed
Courtesy of KIA MOTORS AMERICA, INC.
When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
