Section 95 (Engine Control System Diagnosis - 1.6L (1 Of 3) - Optima (Except HEV))
>>
DTC P0122: Throttle Position Sensor 1 Signal Circuit Low Input
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

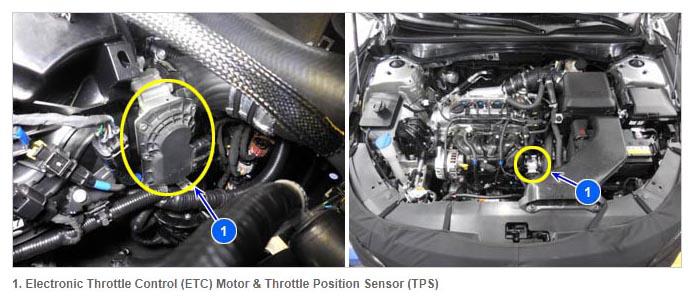

Fig 1: ETC Motor And TPS
Courtesy of KIA MOTORS AMERICA, INC.
