Section 95 (Engine Control System Diagnosis - 1.6L (1 Of 3) - Optima (Except HEV))
>>
DTC P0091: Fuel Pressure Regulator 1 Control Circuit Low
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

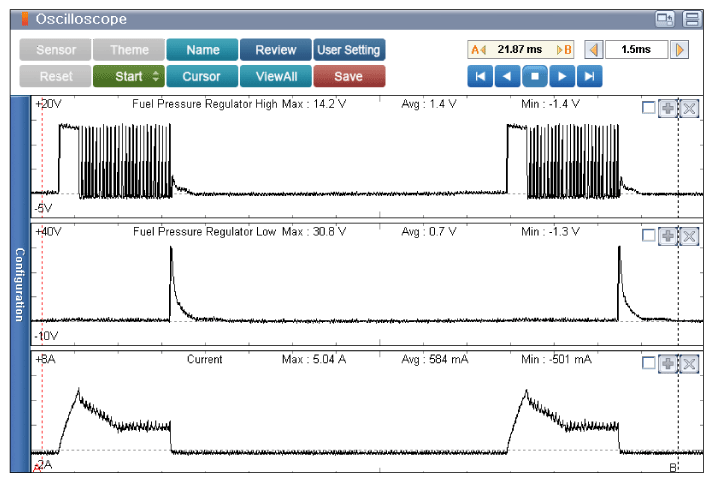

Fig 1: Screen Display - Engine Idle After Warm Up
Courtesy of KIA MOTORS AMERICA, INC.

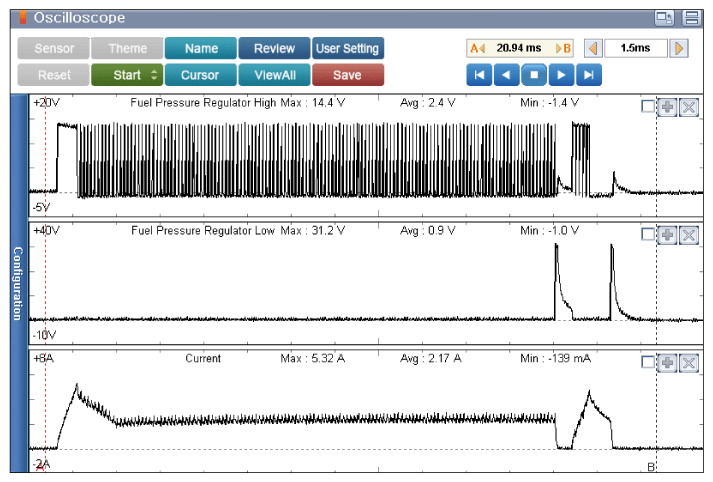

Fig 2: Screen Display - Fuel Rail Pressure Sensor (Approx. 2000RPM)
Courtesy of KIA MOTORS AMERICA, INC.
