Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

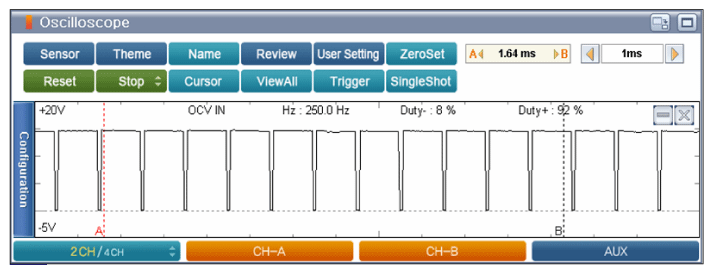

Fig 1: Screen Display - Normal Waveforms Of OCV (IN) At Engine Idle

Courtesy of KIA MOTORS AMERICA, INC.

Duty (-) of OCV is approximately 8% on engine idle. Duty (-) value increase in proportion to engine load.
