Monitor KDS/GDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect KDS/GDS to DLC (Data Link Cable).
  2. Select "Air Conditioner System" and perform to inspect regarding ambient temperature sensor with KDS/GDS.

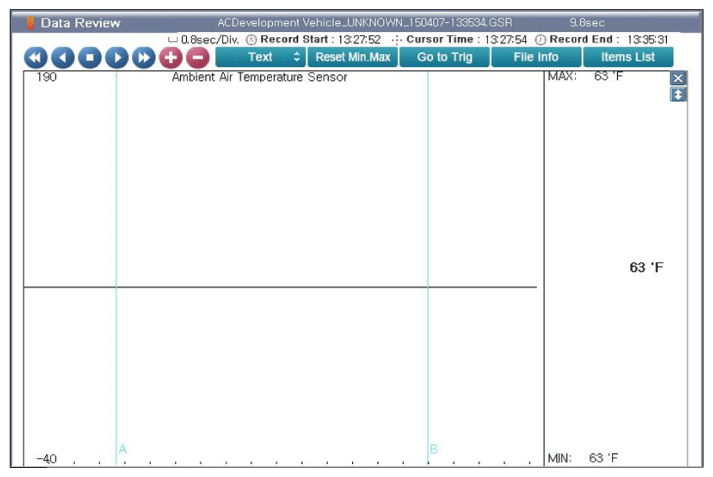

    Fig 1: Screen Display - Current Data Of Ambient Temperature Sensor
    G11833128Courtesy of KIA MOTORS AMERICA, INC.
  3. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
