Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

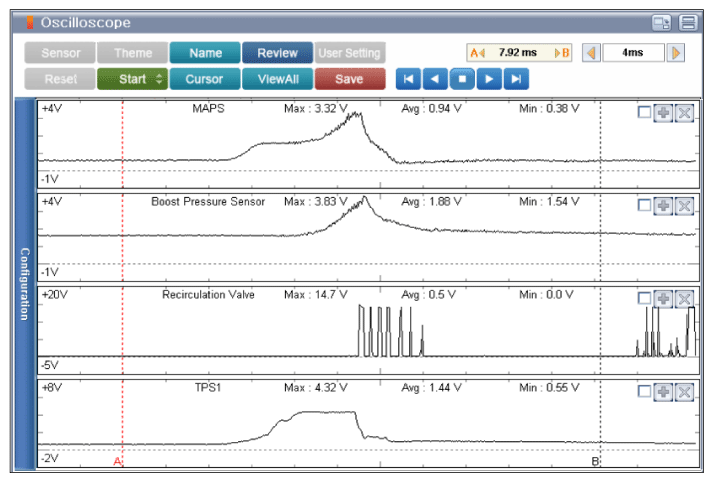

Fig 1: Screen Display - RCV Waveform When Throttle Rapidly Closed On Engine Loaded
G11833058Courtesy of KIA MOTORS AMERICA, INC.
  1. The Recirculation valve (RCV) prevents back flow through the turbocharger when the throttle is rapidly closed to avoid undesirable noise.
