System Inspection

■ Visual check

1. Check Camshaft and crankshaft alignment.

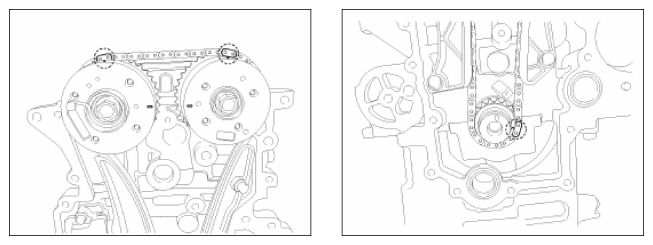

   Fig 1: Camshafts And Crankshaft Timing Position

   Courtesy of KIA MOTORS AMERICA, INC.
2. Have any problems been found?

   YES

   • Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace ECM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
