Section 95 (Engine Control System Diagnosis - 1.6L (1 Of 3) - Optima (Except HEV))
>>
DTC P0016: Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A)
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

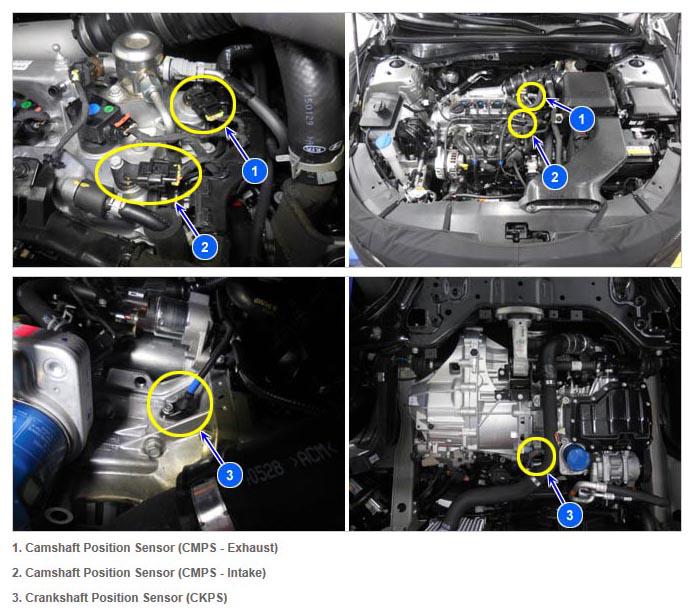

Fig 1: CMPS, CKPS
Courtesy of KIA MOTORS AMERICA, INC.
