Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

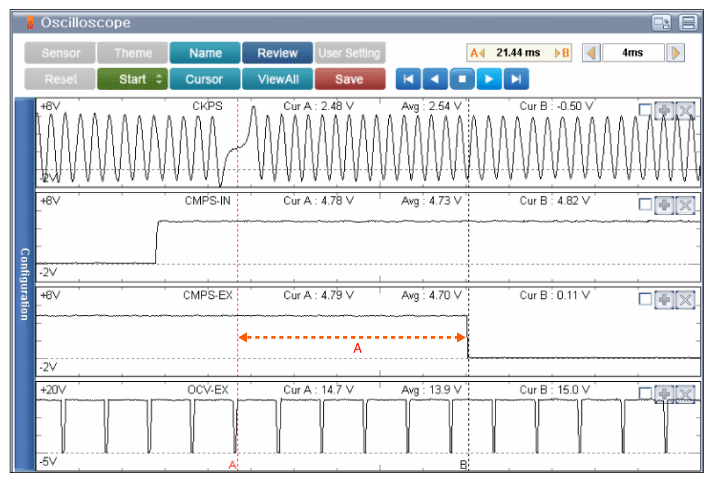

Fig 1: Screen Display - Normal Waveforms Of OCV-IN & CKPS, CMPS (IN, EX) At Engine Idle
G11833021Courtesy of KIA MOTORS AMERICA, INC.
  1. CKPS & CMPS (Exhaust side) Synchronization - There are about 16~17 teeth between the CKPS missing tooth and CMPS signal.
