DUAL CLUTCH TRANSMISSION SYSTEM SPECIAL SERVICE TOOLS
| Tool Name/Number | Illustration | Description |
|---|---|---|
| Engine support fixture (bar) 09200-3N000 | Used for holding engine assembly when removing/installing transmission Used with the supporter (09200-2S000) adapter (09200-4X000) |
|
| Engine support fixture (supporter) A: 09200-2S000 B: 09200-2S100 C: 09200-2S200 |
Used for holding engine assembly when removing/installing transmission Used with the bar (09200-3N000) and adapter (09200-4X000) |
|
| Engine support fixture (adapter) 09200-4X000 | Used for holding engine assembly when removing/installing transmission Used with the bar (09200-3N000) and supporter (09200-2S000) |
|
| Oil seal installer A: 09430-C1190 (Installer) B: 09231-H1100 (Handle) |
Used for installing differential oil seal | |
| Inhibitor switch guide pin 09480-A3800 | Used for fixing "N" range when installing inhibitor switch | |
| Dual clutch remover 09430-C1180 | Used for removing dual clutch assembly | |
| Dual clutch installer 09430-2A240 | Used for installing dual clutch assembly | |
| Clutch actuator remover 09430-A5100 | Used for removing clutch actuator assembly | |
| Clutch actuator adjuster 09430-C1300 | Used for adjusting clutch actuator Used with the clutch actuator adjustment jig (09430-C1302) |
|
| Clutch actuator adjustment jig 09430-C1302 | Used for adjusting clutch actuator Used with the clutch actuator adjuster (09430-C1300) |

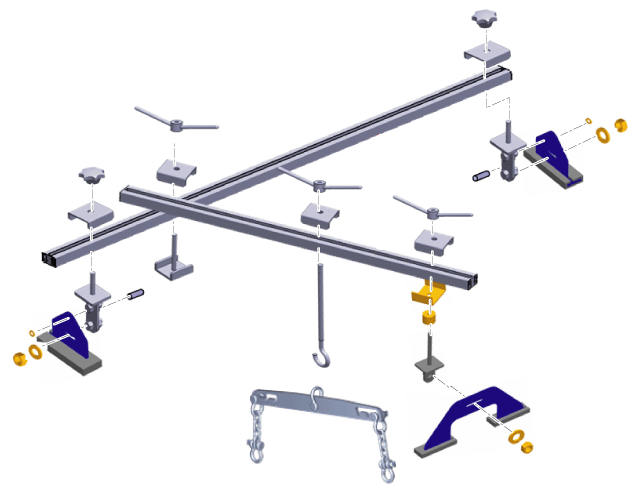

* Engine support fixture special tool assembly drawing
