System Inspection

■ Check the fuel filter for blockage

Remove the fuel pump and check filter debris and clogging of the fuel supply line.

■ Check the fuel level

If you run out of fuel significantly on ramp, it may be a factor of degradation of the fuel pressure.

■ Check low-pressure fuel supply line leakage and blockage.

Low-pressure fuel supply line damage and blockage can be a factor of the fuel pressure drop.

■ Check Fuel Pressure Regulator

• Check Fuel Pressure Regulator performance by measuring voltage and current.
  1. Back probe and measure voltage by using and connecting channel A (+) voltage probe to High side and channel A (-) voltage prove to Low side.
  2. Measure operation current by using Low Current Sensor Module.

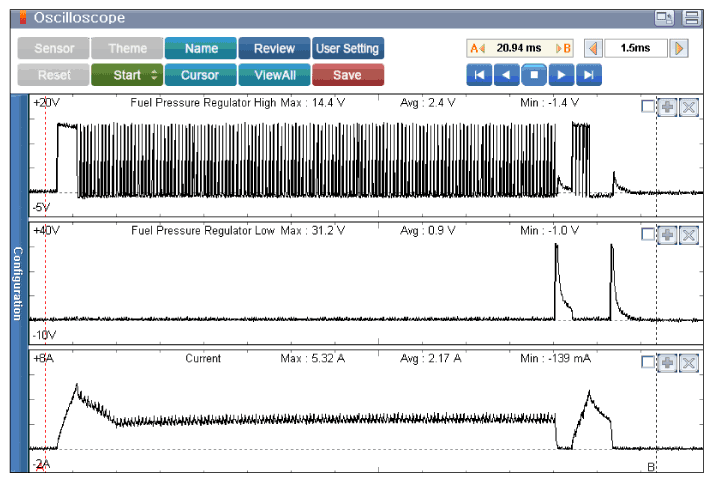

     Fig 1: Screen Display - Engine Idle After Warm Up

     Courtesy of KIA MOTORS AMERICA, INC.

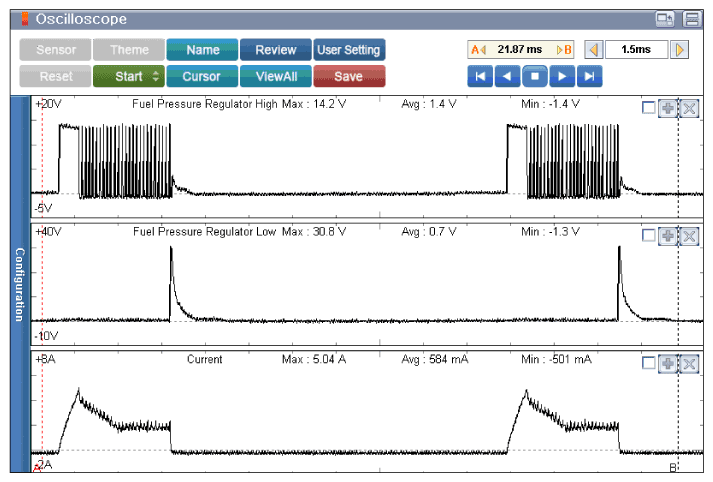

     Fig 2: Screen Display - Approx 2000 RPM

     Courtesy of KIA MOTORS AMERICA, INC.
• Are all listed items normal?

  YES

  • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  • Recheck the listed items from this troubleshooting guide steps, and replace or repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
