Monitor KDS/GDS Data
WARNING: This page is about a different variant/trim than selected.
- Connect KDS/GDS to DLC (Data Link Cable).
- Warm up the engine to normal operating temperature.

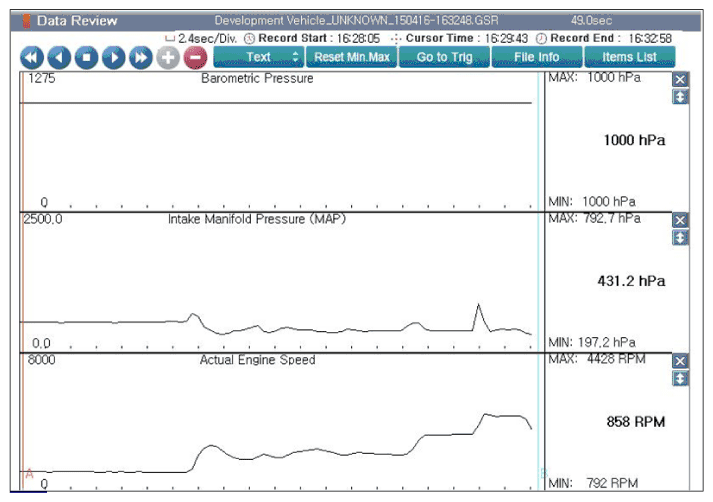

- Check the "Current Data " about related DTC with KDS/GDS.
- Are the parameters displayed correctly?
YES
- The system is operating correctly at this time. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Retry all of procedures once again. If the BPS is in abnormal condition, replace it. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
