System Inspection

■ Check Wheel Speed Sensor

1. Ignition "OFF"
2. Disconnect Front Wheel Speed Sensor connector.
3. Measure resistance between Pin No. 1 (Power) terminal and Pin No. 2 (Signal) terminal of the Front Wheel Speed Sensor. (Component Side)

   Specification:

   Front Wheel Speed Sensor	Temperature	Resistance (kΩ)
   	20	466 kΩ

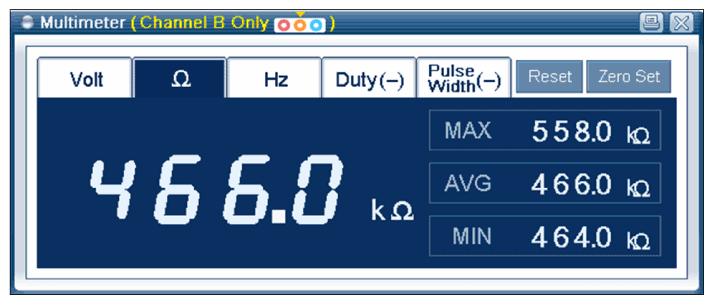

   Fig 1: Screen Display - Resistance Of Front Wheel Speed Sensor

   Courtesy of KIA MOTORS AMERICA, INC.
4. Ignition "OFF"
5. Disconnect Rear Wheel Speed Sensor connector.
6. Measure resistance between Pin No. 1 (Power) terminal and Pin No. 2 (Signal) terminal of the Rear Wheel Speed Sensor. (Component Side)

Specification:

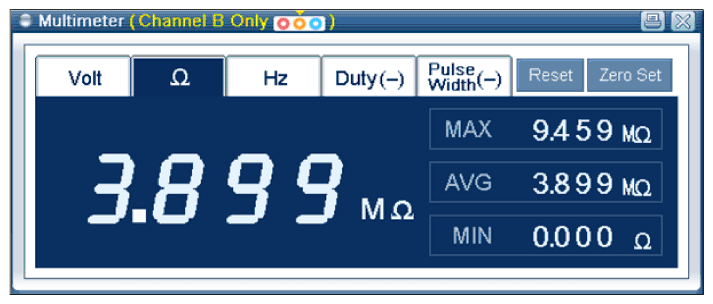

Fig 2: Screen Display - Resistance Of Rear Wheel Speed Sensor

Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the WSS operate properly and is the measured resistance within specification? (Check variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace WSS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
