Component Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check APS

Connect KDS/GDS to DLC (Data Link Cable).
Warm up the engine to normal operating temperature.
Check the "Current Data" about related DTC with KDS/GDS.

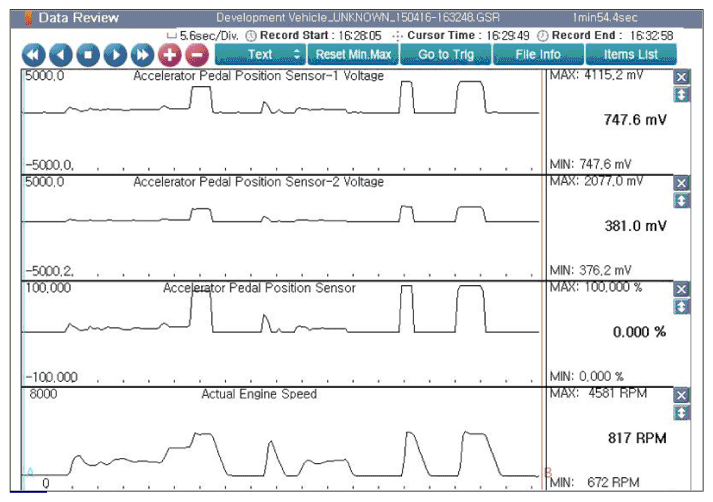

Fig 1: Screen Display - Engine Idle After Warm Up And Approx 2000 RPM And At Acceleration
Courtesy of KIA MOTORS AMERICA, INC.
Are the parameters displayed correctly?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace APS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
