Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

Fig 1: Screen Display - Engine Idle After Warm Up

Courtesy of KIA MOTORS AMERICA, INC.

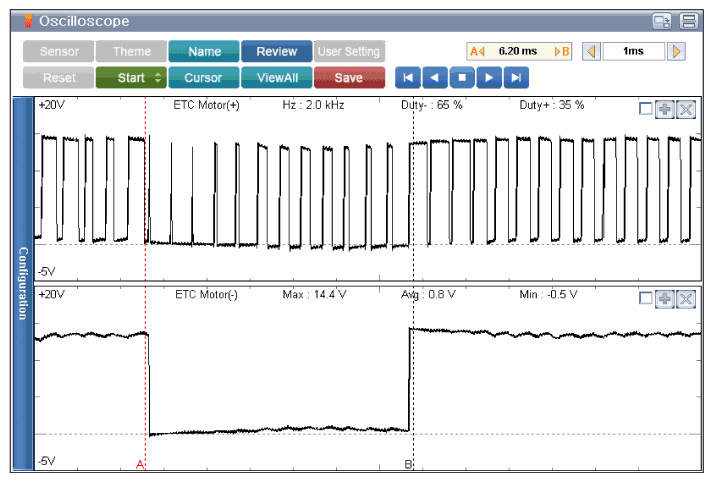

Fig 2: Screen Display - Waveform Of ETC Motor Operation Immediate When Engine Accelerating

Courtesy of KIA MOTORS AMERICA, INC.

ETC Motor (+) → Duty (+) Approx. 86%

Duty (-) Approx. 14%

ETC Motor (-) → Not in Control
