System Inspection

WARNING: This page is about a different variant/trim than selected.

■ Resetting Adaptive Values

Connect KDS/GDS to DLC (Data Link Cable).
Ignition "ON" & ENG "OFF"
Select the "Vehicle S/W Management " about related DTC with KDS/GDS.

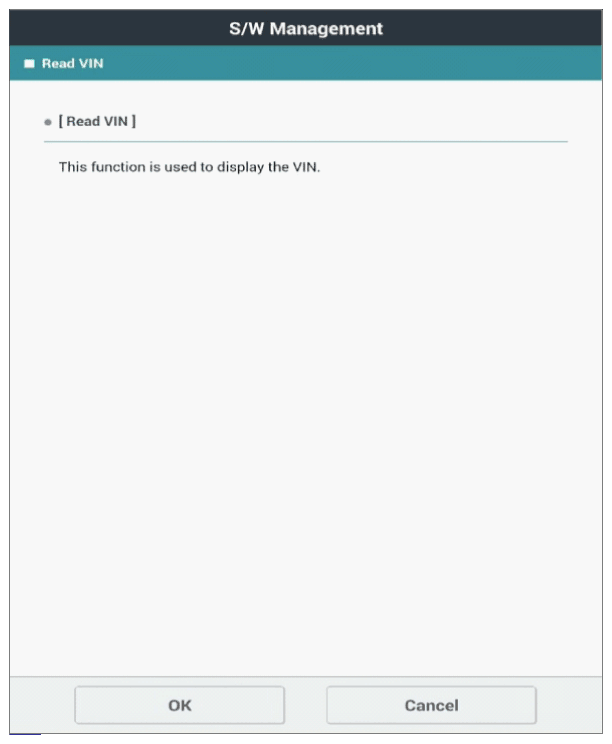

Fig 1: Screen Display - Select Read VIN
Courtesy of KIA MOTORS AMERICA, INC.

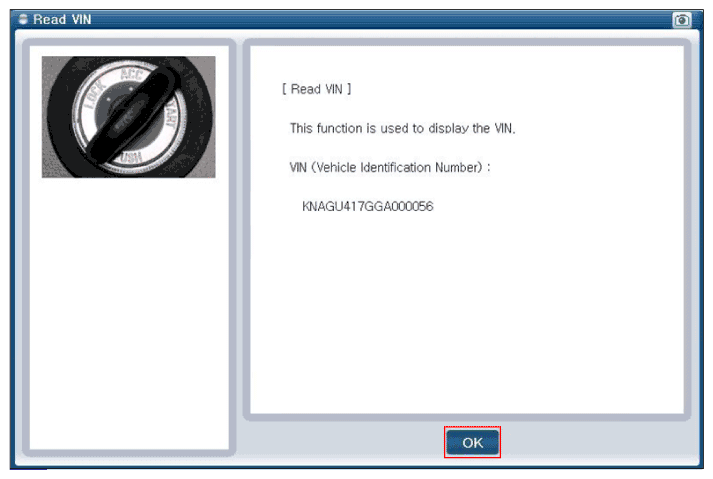

Fig 2: Screen Display - Press OK Button (Ignition ON, ENG OFF)
Courtesy of KIA MOTORS AMERICA, INC.

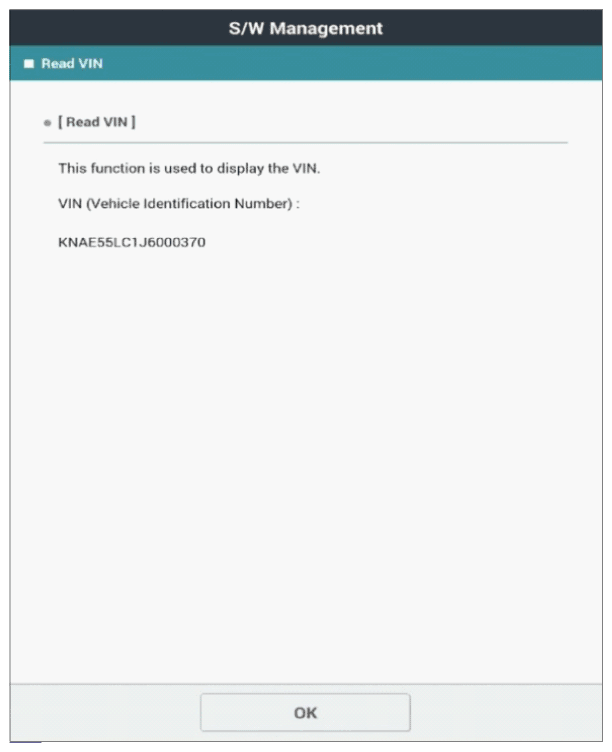

Fig 3: Screen Display - Check VIN Number (Completed)
Courtesy of KIA MOTORS AMERICA, INC.

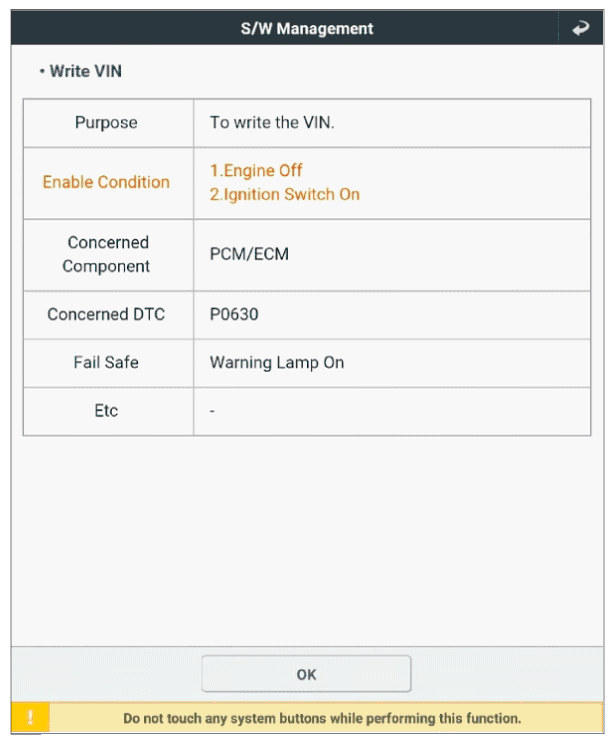

Fig 4: Screen Display - Select Write VIN
Courtesy of KIA MOTORS AMERICA, INC.

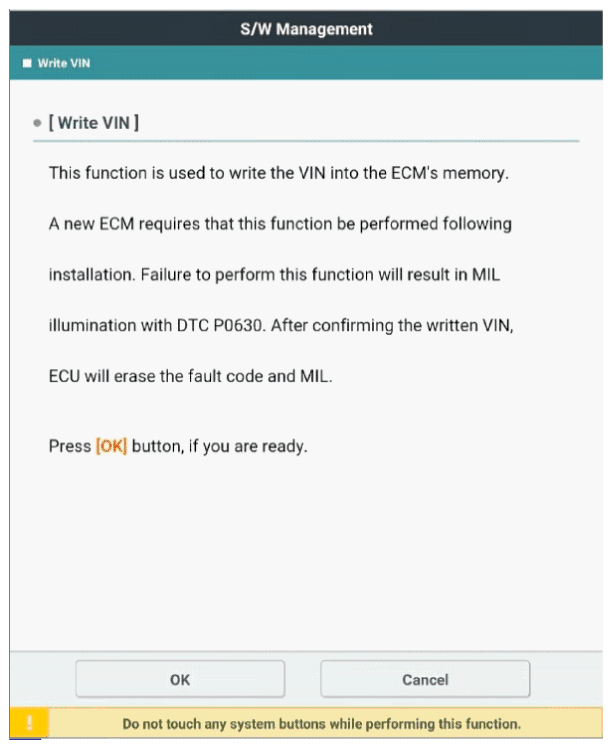

Fig 5: Screen Display - Press OK Button (Ignition ON, ENG OFF)
Courtesy of KIA MOTORS AMERICA, INC.

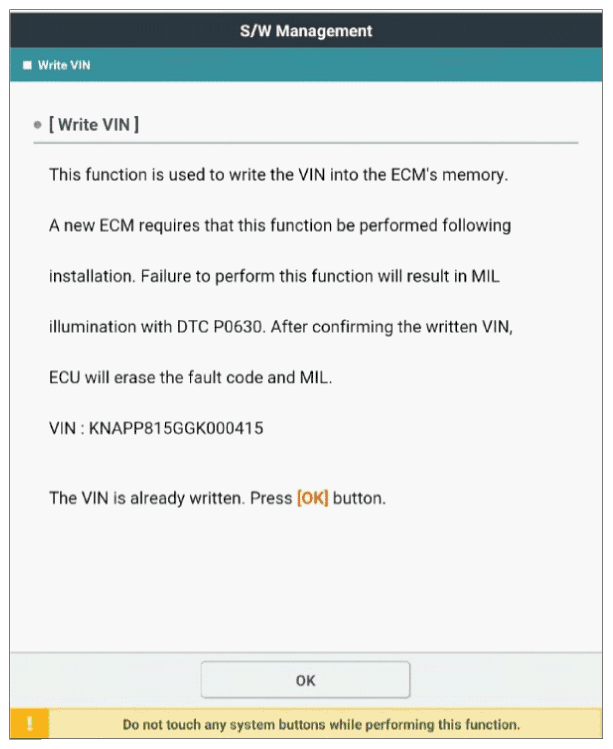

Fig 6: Screen Display - Check The VIN Number (Completed)
Courtesy of KIA MOTORS AMERICA, INC.
When the "Read VIN, Write VIN" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
