Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

Fig 1: Screen Display - Engine Idle After Warm Up

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 1450μs

CH. A - Injector Max 64.5V

CH. AUX - Injector Current MAX 9.21A

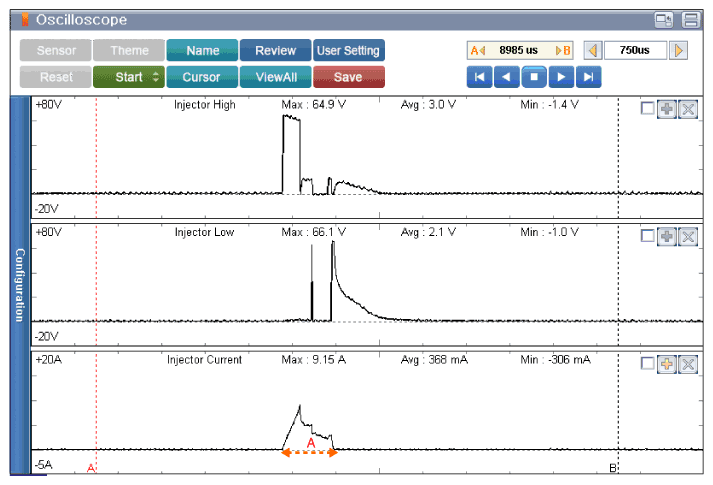

Fig 2: Screen Display - Approx 2500 RPM

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 900μs

CH. A - Injector Max 64.9V

CH. AUX - Injector Current MAX 9.15A

Fig 3: Screen Display - At Acceleration

Courtesy of KIA MOTORS AMERICA, INC.

CH. A - Injector Max 65.2V

CH. AUX - Injector Current MAX 9.09A
