Component Inspection

■ Check Alternator performance

1. Ignition "OFF"
2. Connect CH A probe to COM signal terminal (Pin No. 1) of Alternator connector and CH B probe to FR signal terminal (Pin No. 3) of Alternator connector.
3. Warm up the engine to normal operating temperature.
4. Measure signal waveform of COM and FR.

   Specification:  Refer to signal waveform & data below.

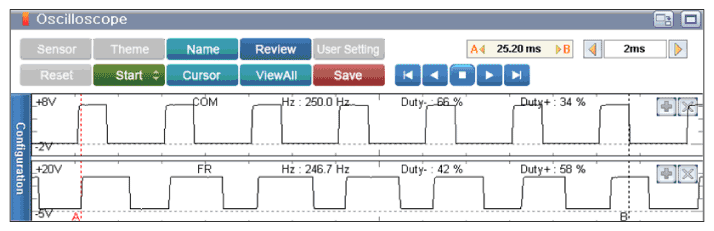

   Fig 1: Screen Display - Engine Idle After Warm Up

   Courtesy of KIA MOTORS AMERICA, INC.

   COM → Duty (+) Approx. 34%

   Duty (-) Approx. 66%,

   FR → Duty (+) Approx. 58%

   Duty (-) Approx. 42%,

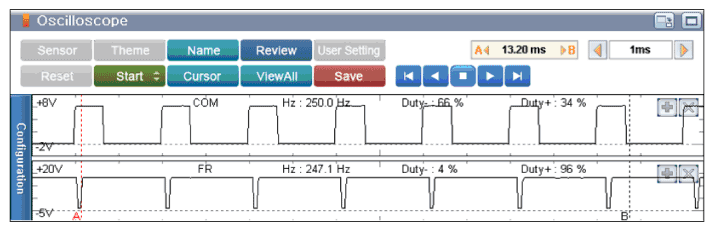

   Fig 2: Screen Display - Electrical Load (Engine Idle After Warm Up)

   Courtesy of KIA MOTORS AMERICA, INC.

   COM → Duty (+) Approx. 34%

   Duty (-) Approx. 66%,

   FR → Duty (+) Approx. 96%

   Duty (-) Approx. 4%,

   Duty (+) from FR terminal is increased if electrical loads are ON (Head Lamp and Defrost are ON) PCM controls generation of alternator with duty from FR terminal when electrical Loads turn on.

■ Confirm Part Inspection

1. Does the Alternator operate properly? (Check variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace Alternator and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
