Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the purge control solenoid valve connector (A) and vapor hose (B).
  3. Remove the purge control solenoid valve (C).

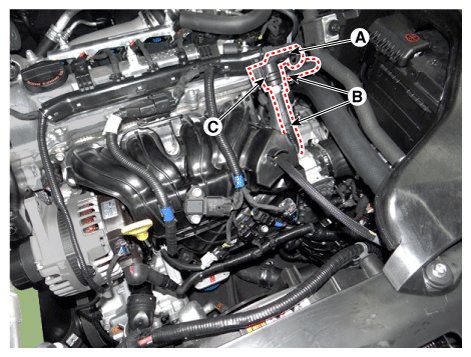

Fig 1: Removing Purge Control Solenoid Valve
G11823517Courtesy of KIA MOTORS AMERICA, INC.
