Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the sensor (B) from the Intake manifold by loosening the mounting bolts.

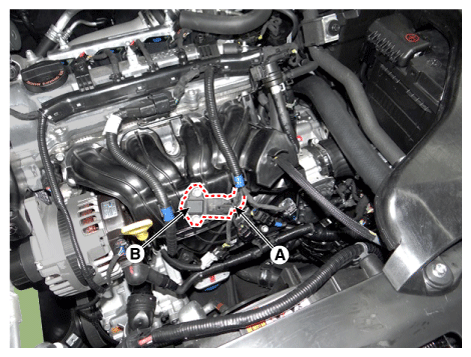

Fig 1: Disconnecting Manifold Absolute Pressure Sensor Connector
G11823437Courtesy of KIA MOTORS AMERICA, INC.
