Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the intake manifold.

    (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

  3. Remove the knock sensor (A) after loosening the mounting bolt.

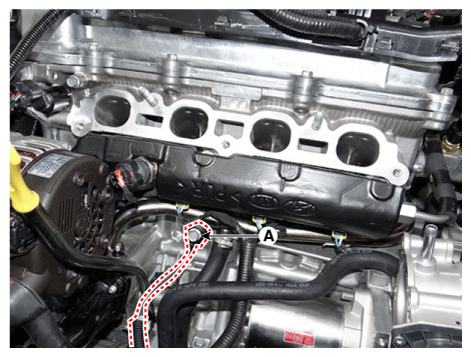

Fig 1: Locating Knock Sensor Mounting Bolt
G11823477Courtesy of KIA MOTORS AMERICA, INC.
