Section 90 (Engine Control System - 1.6L - Optima (Except HEV))
>>
Electric Waste Gate Actuator (EWGA)
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform
WARNING:
This page is about a different variant/trim than selected.

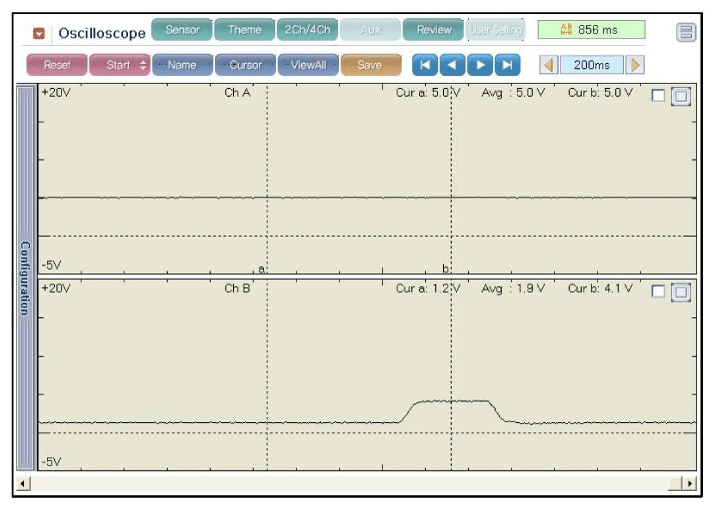

Fig 1: Screen Display - Channel A And B Signal Waveform Data
Courtesy of KIA MOTORS AMERICA, INC.
