Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the intercooler outlet hose (A).

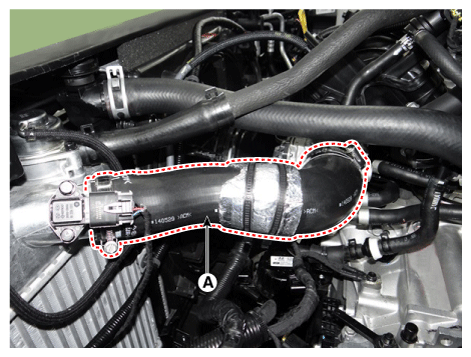

    Fig 1: Locating Intercooler Outlet Hose
    G11823430Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the ETC module connector (A) and vapor hose (B),
  5. Remove the ETC module mounting bolts (C).

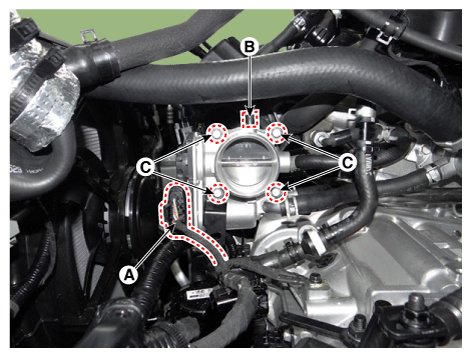

    Fig 2: Locating ETC Module Connector And Vapor Hose
    G11823431Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the ETC module (A) after disconnect the coolant hoses (B).

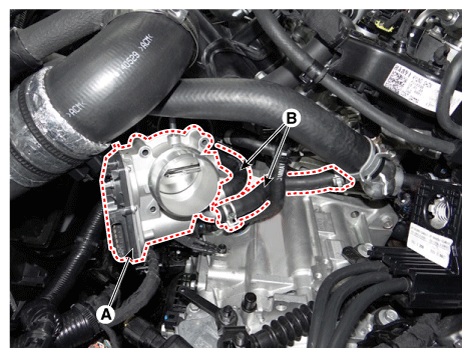

Fig 3: Removing ETC Module
G11823432Courtesy of KIA MOTORS AMERICA, INC.
