Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the crankshaft position sensor connector (A).

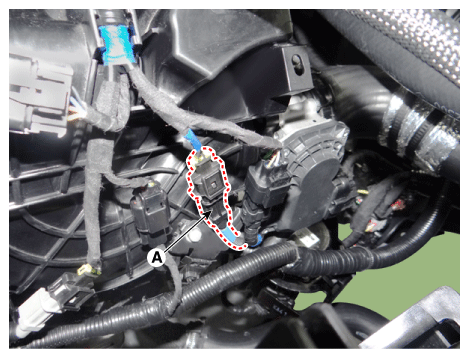

    Fig 1: Disconnecting Crankshaft Position Sensor Connector
    G11823463Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the engine room under cover,

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  4. Remove the sensor (A) by loosening the mounting bolt.

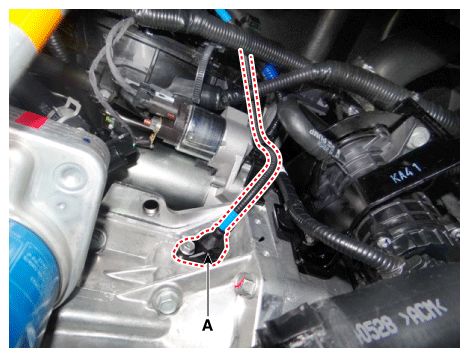

Fig 2: Locating Sensor
G11823464Courtesy of KIA MOTORS AMERICA, INC.
