Section 90 (Engine Control System - 1.6L - Optima (Except HEV))
>>
Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>
Wave Form
Wave Form
WARNING:
This page is about a different variant/trim than selected.

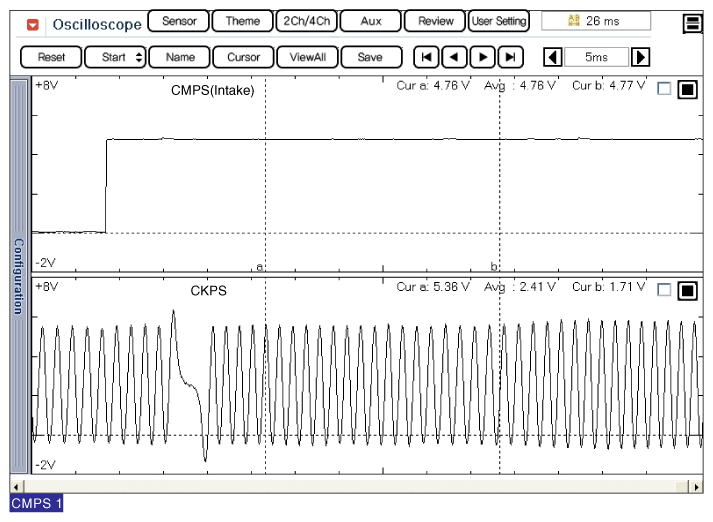

Fig 1: Screen Display - CKPS And CMPS (Intake) Signal Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

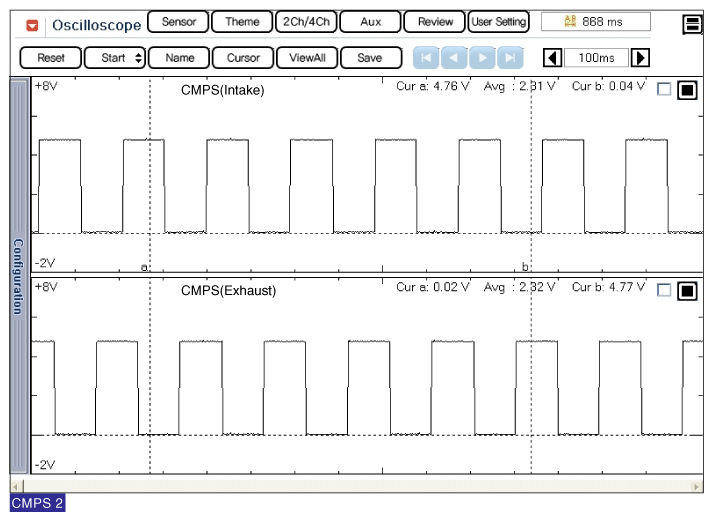

Fig 2: Screen Display - CKPS And CMPS (Intake) Signal Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
