[Bank 1/Exhaust]

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the camshaft position sensor connector.
  3. Remove the sensor by loosening the mounting bolt (A).

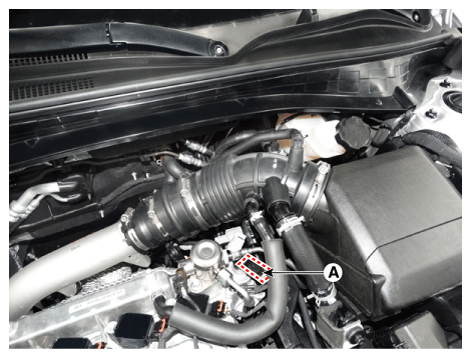

Fig 1: Removing Sensor Mounting Bolt (Bank 1/Exhaust)
G11823471Courtesy of KIA MOTORS AMERICA, INC.
