Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the CVVT oil control valve connector.
  3. Remove the valves (A) by loosening the mounting bolt.

    [Bank 1/Intake]

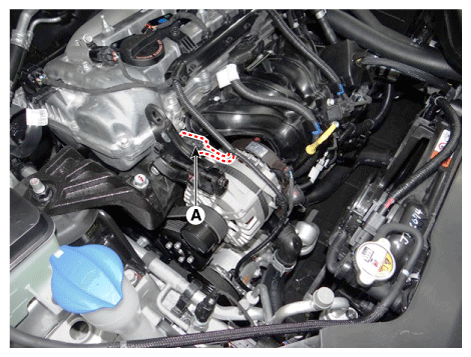

    Fig 1: Disconnecting CVVT Oil Control Valve Connector (Bank 1/Intake)
    G11823522Courtesy of KIA MOTORS AMERICA, INC.

    [Bank 1/Exhaust]

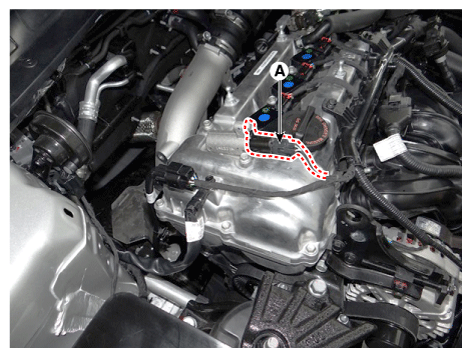

    Fig 2: Disconnecting CVVT Oil Control Valve Connector (Bank 1/Exhaust)
    G11823523Courtesy of KIA MOTORS AMERICA, INC.
