Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air duct (A).

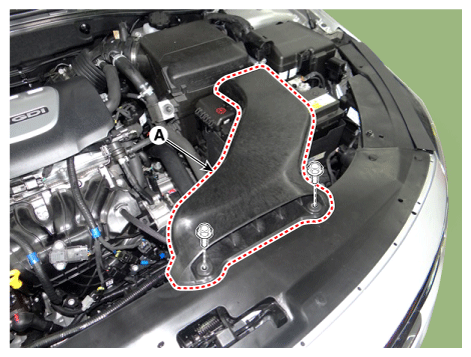

    Fig 1: Removing Air Duct
    G11823452Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the boost pressure sensor connector (A).
  4. Remove the sensor (B) by loosening the mounting bolts.

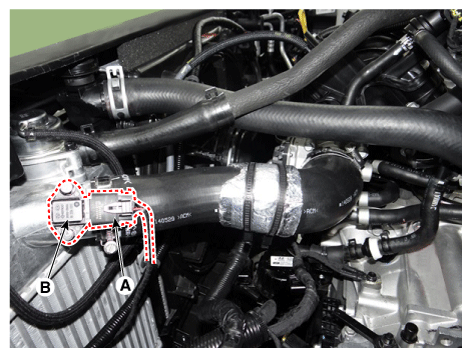

Fig 2: Disconnecting Boost Pressure Sensor Connector
G11823453Courtesy of KIA MOTORS AMERICA, INC.
