Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

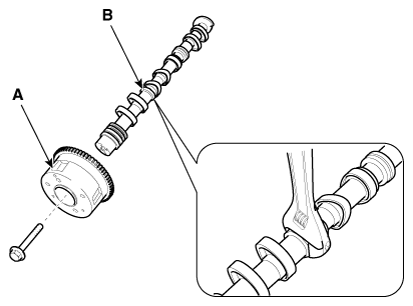

Install the intake CVVT (A) to the intake camshaft.
Tightening torque:

63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb.ft)

Fig 1: Installing Intake CVVT To Intake Camshaft
Courtesy of KIA MOTORS AMERICA, INC.

Information

When installing the CVVT bolt, hold the hexagonal portion (B) on the camshaft with a wrench to prevent the camshaft from rotating.

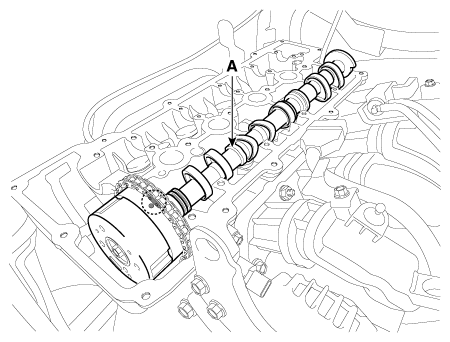

Install the intake CVVT & camshaft (A), with the timing mark on the intake CVVT sprocket aligned with the mark (painted link) on the timing chain.

Fig 2: Locating Intake CVVT And Camshaft With Timing Mark
Courtesy of KIA MOTORS AMERICA, INC.

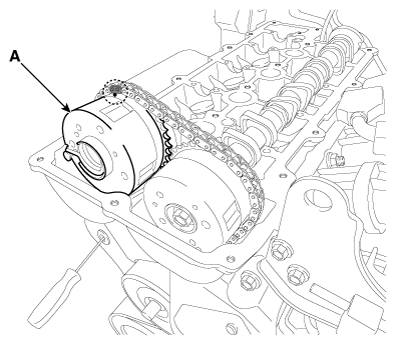

Install the exhaust CVVT (A), with the timing mark on the exhaust CVVT sprocket aligned with the mark (painted link) on the timing chain.

Fig 3: Locating Exhaust CVVT With Timing Mark
Courtesy of KIA MOTORS AMERICA, INC.

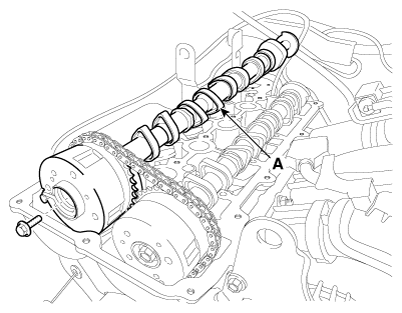

Install the exhaust camshaft (A) to the exhaust CVVT.
Tightening torque:

63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb.ft)

Fig 4: Installing Exhaust Camshaft To Exhaust CVVT
Courtesy of KIA MOTORS AMERICA, INC.

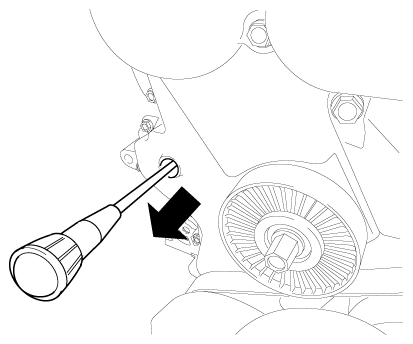

Remove the pick from the service hole in the timing chain cover.

Fig 5: Removing Pick From Service Hole Of Timing Chain Cover
Courtesy of KIA MOTORS AMERICA, INC.

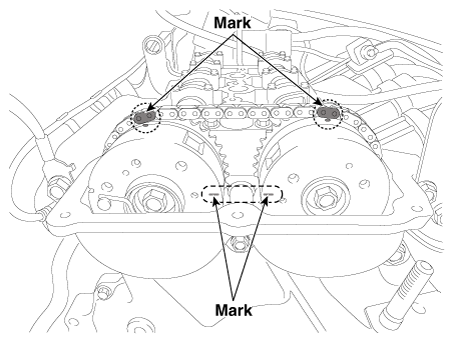

Check that each timing mark of the intake and exhaust CVVT sprockets is aligned as shown below.

Fig 6: Locating Timing Mark Of Intake And Exhaust CVVT Sprockets
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the bolt (A) to the service hole in the timing chain cover.
Tightening torque:

27.5 - 30.4 N.m (2.8 - 3.1 kgf.m, 20.3 - 22.4 lb.ft)

Fig 7: Locating Timing Chain Cover Service Hole Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install the engine mounting support bracket.

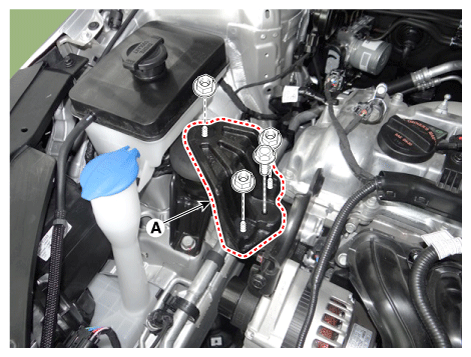

1. Install the engine mounting support bracket (A).
  Tightening torque

  Nut (B):

  63.7 - 107.8 N.m (6.5 - 11.0 kgf.m, 47.0 - 79.5 lb.ft)

  Bolt and nuts (C):

  58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb.ft)

  Fig 8: Installing Engine Mounting Support Bracket
  Courtesy of KIA MOTORS AMERICA, INC.

  NOTE: Always use a new nuts.

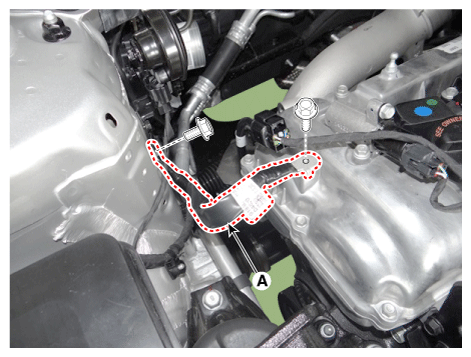

2. Install the engine ground cable (A).
  Tightening torque:

  63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.3 lg - ft)

  Fig 9: Installing Engine Ground Cable
  Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the jack from the oil pan.

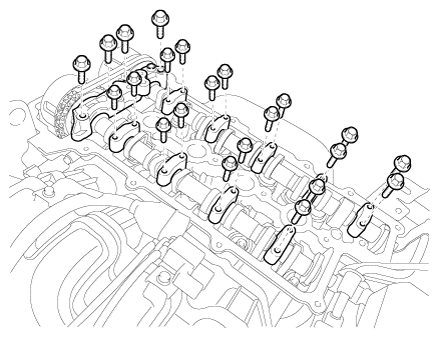

Install the camshaft bearing caps (A) in the order shown below and tighten the bolts to the specified torque.
Tightening torque

M6 bolts:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

M8 bolts:

18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

Fig 10: Installing Camshaft Bearing Caps
Courtesy of KIA MOTORS AMERICA, INC.

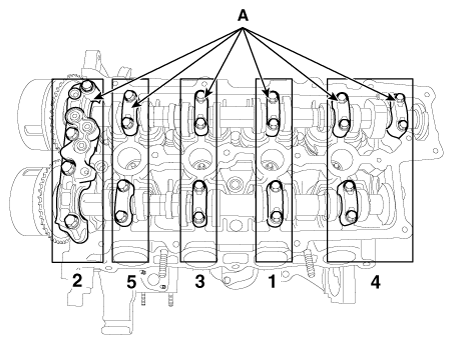

Fig 11: Camshaft Bearing Cap Bolts Tightening Sequence

Courtesy of KIA MOTORS AMERICA, INC.

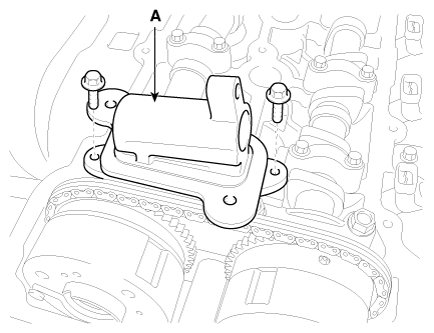

Install the exhaust oil control valve (OCV) adaptor (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 12: Installing Exhaust Oil Control Valve Adaptor
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Check that the front camshaft bearing cap O - ring is properly seated in place when installing the OCV adaptor.
Install the cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")
