[Fuel Sender]
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF, and then remove battery (-) cable.
- Remove the fuel pump assembly.

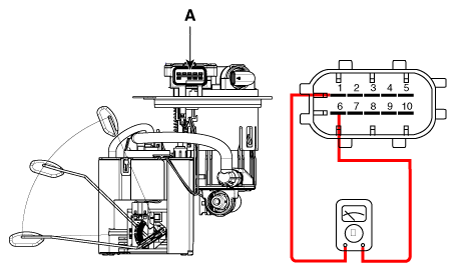

- Using an ohmmeter, measure the resistance between terminals 1 and 6 of sender connector (A) at each float level.
Courtesy of KIA MOTORS AMERICA, INC.
Pin No. Description 1 Fuel sender ground 2 Fuel pressure sensor (FPS) signal input 3 CAN [High] 4 Fuel pressure sensor (FPS) power supply (+5V) 5 Fuel pressure sensor (FPS) ground (-) 6 Fuel sender signal 7 - 8 CAN [Low] 9 Ground 10 Battery power (B+) - Also check that the resistance changes smoothly when the float is moved from "E" to "F".
Position Resistance (Ω) Capacity (l ) E 297 - 303 3 1/2 80 - 84 35.7 F 14 - 16 68.6
