Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the fuel pump.
(Refer to Low Pressure Fuel Pump Fuel Delivery System )
Disconnect the fuel sender connector (A).

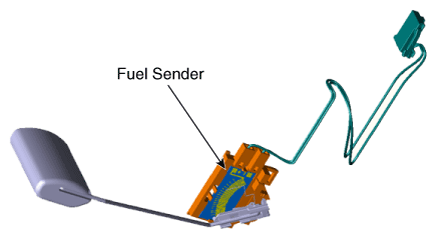

Fig 1: Locating Fuel Sender Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel sender (A) after releasing the fix hook.

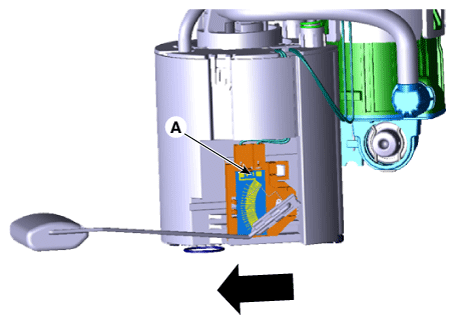

Fig 2: Removing Fuel Sender (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

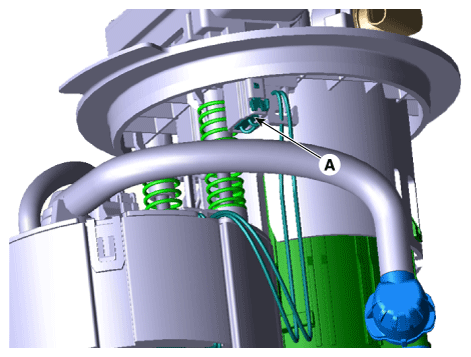

Fig 3: Removing Fuel Sender (2 Of 2)
