Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the fuel pump.
(Refer to Low Pressure Fuel Pump Fuel Delivery System )

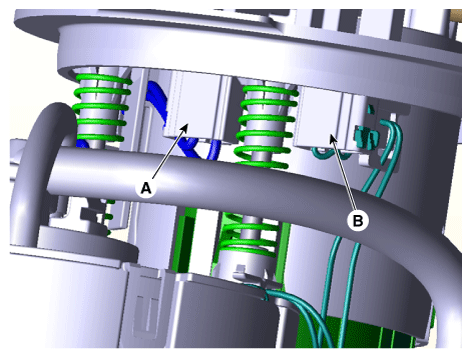

Disconnect the electric pump wiring connector (A), and the fuel sender connector (B).

Fig 1: Locating Electric Pump Wiring Connector, Fuel Sender Connector
Courtesy of KIA MOTORS AMERICA, INC.

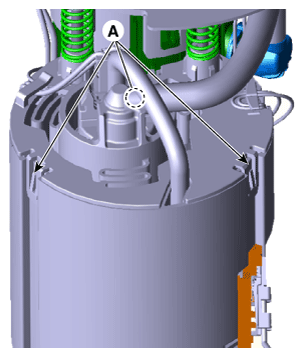

Remove the reservoir-cup after releasing the fixing hook (A).

Fig 2: Releasing Fixing Hook
Courtesy of KIA MOTORS AMERICA, INC.

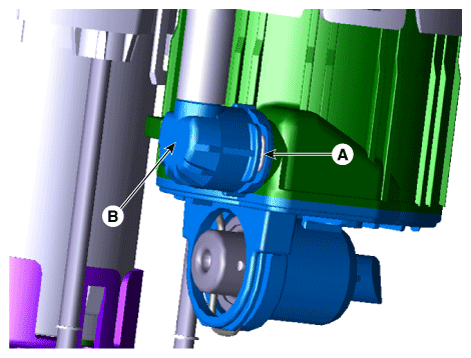

Remove the fixing clip (A), and then disconnect the fuel tube (B).

Fig 3: Locating Fuel Tube
Courtesy of KIA MOTORS AMERICA, INC.

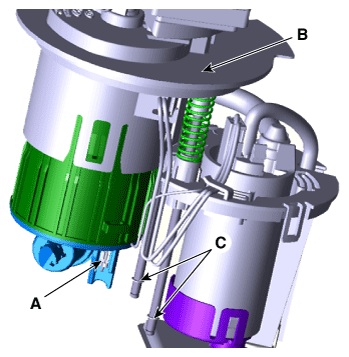

Disconnect the ground cable (A).
Remove the head assembly (B) after removing the cushion pipe fixing clip (C).

Fig 4: Disconnecting Ground Cable
Courtesy of KIA MOTORS AMERICA, INC.

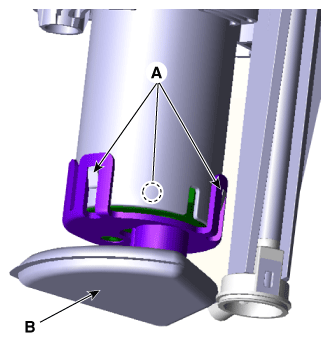

Remove the pre-filter (B) after releasing the fixing hooks (A).

Fig 5: Locating Pre-Filter
Courtesy of KIA MOTORS AMERICA, INC.

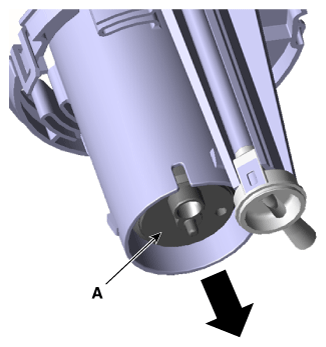

Remove the fuel pump motor (A) in the direction of an arrow.

Fig 6: Removing Fuel Pump Motor (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

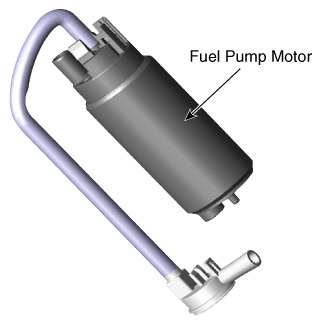

Fig 7: Removing Fuel Pump Motor (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
