Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the fuel pump service cover (A).

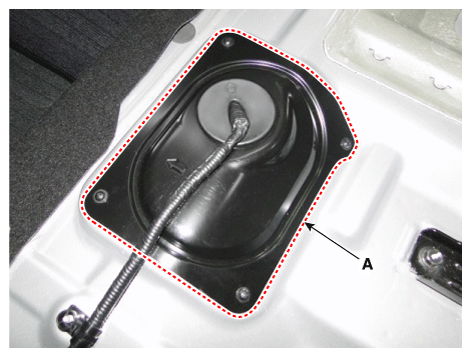

    Fig 1: Removing Fuel Pump Service Cover
    G11823606Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel pump control module connector (A).
  5. Remove the fuel pressure control module (A) after removing the screws.

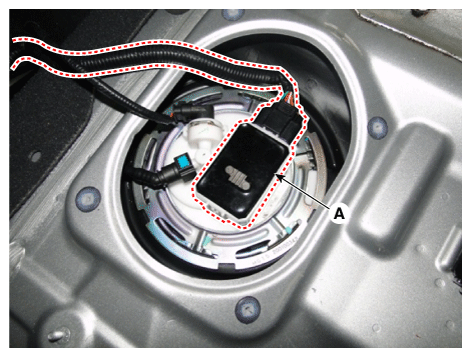

Fig 2: Disconnecting Fuel Pump Control Module Connector
G11823607Courtesy of KIA MOTORS AMERICA, INC.
