Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the fuel pump service cover (A).

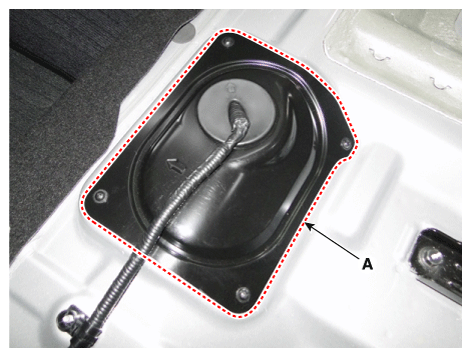

    Fig 1: Removing Fuel Pump Service Cover
    G11823613Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel pressure sensor connector (A).
  5. Remove the fuel pressure sensor fixing pin (B).
  6. Remove the fuel pressure sensor (C) from the fuel pump.

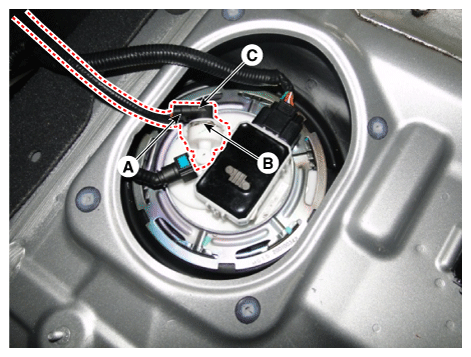

Fig 2: Disconnecting Fuel Pressure Sensor Connector
G11823614Courtesy of KIA MOTORS AMERICA, INC.
