Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Low Pressure Fuel Pump  Fuel Delivery System )

  2. Remove the fuel pressure regulator fixing clip (A).
  3. Remove the fuel pressure regulator (B) from the fuel filter.

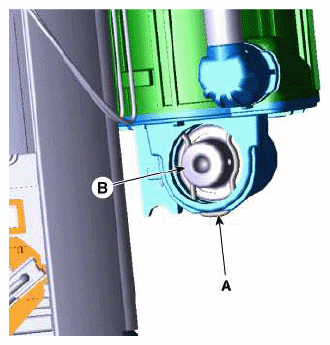

Fig 1: Removing Fuel Pressure Regulator Fixing Clip
G11705265Courtesy of KIA MOTORS AMERICA, INC.

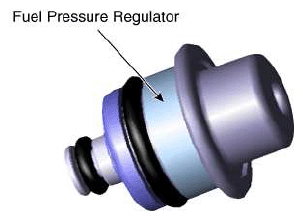

Fig 2: Removing Fuel Pressure Regulator From Fuel Filter
G11705266Courtesy of KIA MOTORS AMERICA, INC.
