High Pressure Fuel Line [High Pressure Fuel Pump ↔ Delivery Pipe]

WARNING: This page is about a different variant/trim than selected.

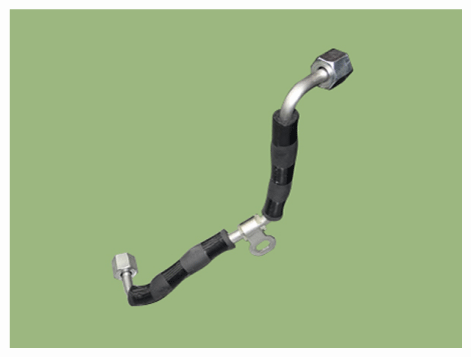

Fig 1: High Pressure Fuel Line

Courtesy of KIA MOTORS AMERICA, INC.

Remove the installation high pressure fuel pipe flange nut (A) from the high pressure fuel pump with the special service tool [SST No. 09314 - 3Q100 or 09314 - 27130].
High pressure fuel pipe flang nut:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

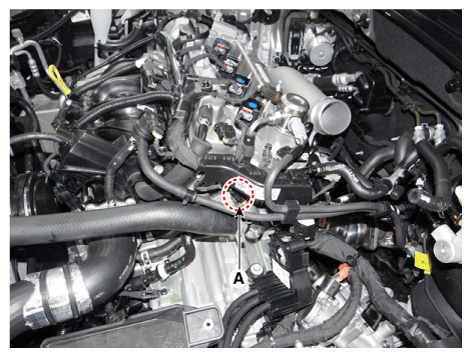

Fig 2: Removing High Pressure Fuel Pipe Flange Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the installation high pressure fuel pipe flange nut (A) from the delivery pipe with the special service tool [SST No. 09314 - 3Q100 or 09314 - 27130].
High pressure fuel pipe flang nut:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

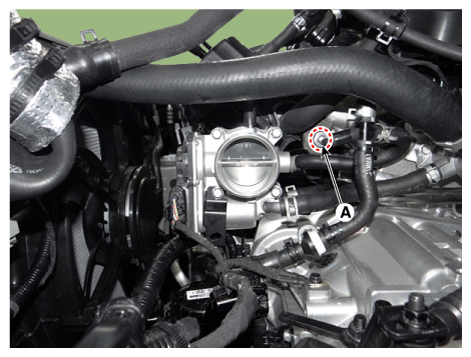

Fig 3: Locating High Pressure Fuel Pipe Flange Nut (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

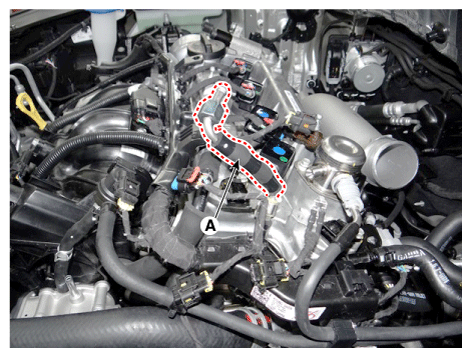

Fig 4: Locating High Pressure Fuel Pipe Flange Nut (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the engine coolant temperature sensor connector (A).

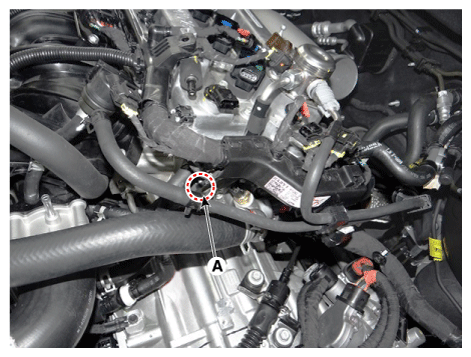

Fig 5: Disconnecting Engine Coolant Temperature Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the High pressure fuel pipe function block mounting bolt (A).
High pressure fuel pipe function block mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

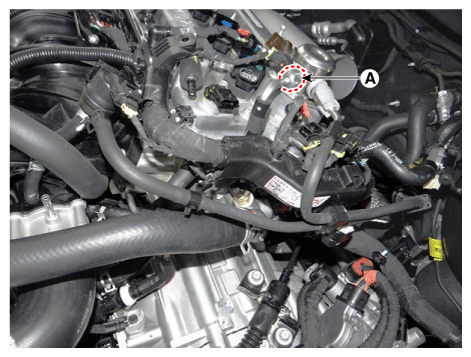

Fig 6: Locating High Pressure Fuel Pipe Function Block Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the high pressure fuel pipe (A).

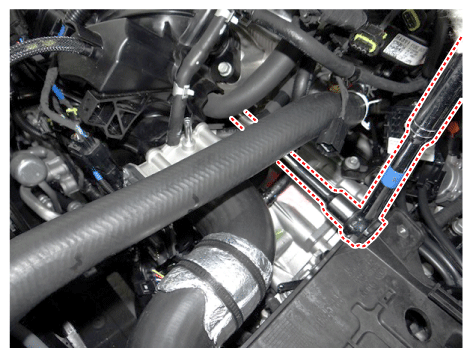

Fig 7: Removing High Pressure Fuel Pipe

Courtesy of KIA MOTORS AMERICA, INC.
