Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Drain the engine coolant.

    (Refer to Cooling System - "COOLANT ")

  2. Remove the drive belt.

    (Refer to Drive Belt System - "DRIVE BELT ")

  3. Remove the water pump pulley (A).

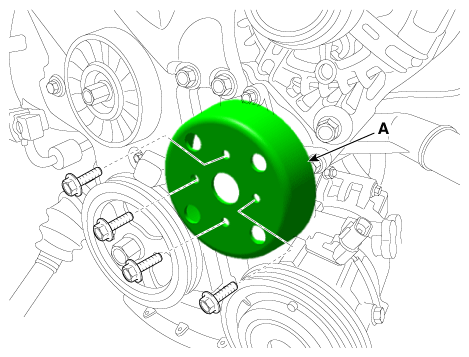

    Fig 1: Removing Water Pump Pulley
    G11822795Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the water pump (A).

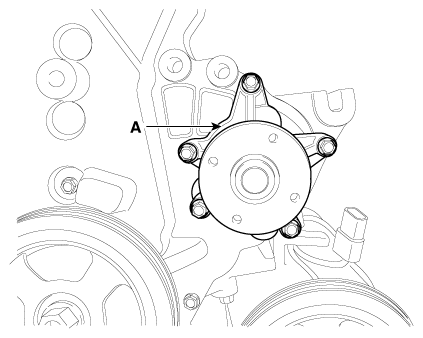

Fig 2: Locating Water Pump
G11822796Courtesy of KIA MOTORS AMERICA, INC.
