Water Pipe

WARNING: This page is about a different variant/trim than selected.

Remove the water temperature control assembly.
Remove the intake manifold.
(Refer to Intake and Exhaust System - "INTAKE MANIFOLD ")
Disconnect the injector connectors (A).
Disconnect the rail pressure sensor (RPS) connector (B).

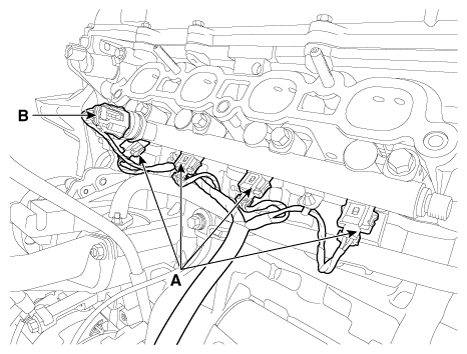

Fig 1: Locating Injector Connectors And Rail Pressure Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the water pipe (A).
Tightening torque

M6 bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

M8 bolt:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

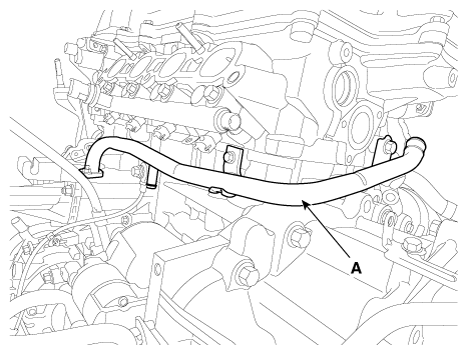

Fig 2: Locating Water Pipe
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
