Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Disassembly of the thermostat would have an adverse effect, causing a lowering of cooling efficiency.

Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
Remove the radiator lower hose (A).

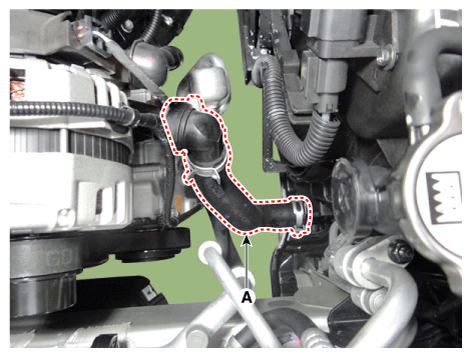

Fig 1: Locating Radiator Lower Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the water inlet fitting (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

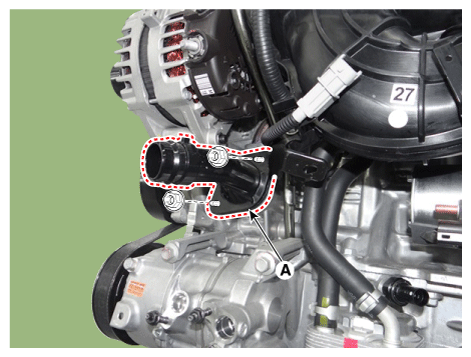

Fig 2: Locating Water Inlet Fitting
Courtesy of KIA MOTORS AMERICA, INC.
Remove the thermostat (A).

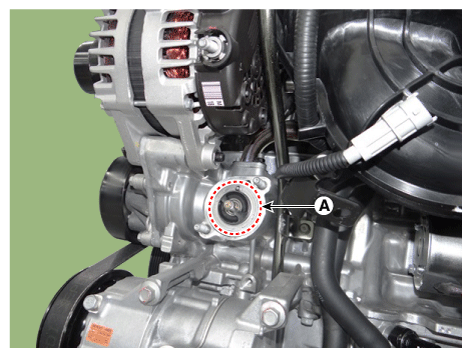

Fig 3: Locating Thermostat
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE: Place the thermostat with the jiggle valve (A) upward.

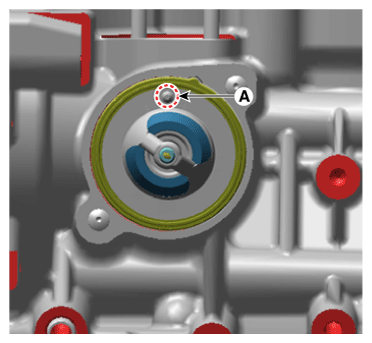

Fig 4: Locating Jiggle Valve
Courtesy of KIA MOTORS AMERICA, INC.
Fill with the engine coolant.
(Refer to Cooling System - "COOLANT ")
Start engine and check for leaks.
